2023 Trek Procaliber 9.5 - Mercury
Procaliber 9.5 is a lightweight carbon hardtail with the unique advantage of our trail-smoothing IsoSpeed decoupler. It's the most affordable carbon model in the Procaliber mountain bike family, and it's built for speed and efficiency on singletrack with a wide-range Shimano Deore 1x12 drivetrain, RockShox Judy SL fork, and speedy 29er wheels.
It's right for you if...
You love riding singletrack. You’ve entered several XC races, enjoyed every single one, and want to give racing a serious go. You’re looking for a solid carbon race bike at an affordable price.
The tech you get
A light and stiff carbon frame with trail-smoothing IsoSpeed, a 100mm RockShox Judy SL fork with Solo Air spring and a TurnKey lockout, a smooth-shifting Shimano Deore 1x12 drivetrain, powerful Shimano hydraulic disc brakes, and fast, tubeless ready 29" wheels.
The final word
Procaliber 9.5 gives you the advantages of a carbon race bike with IsoSpeed at a wallet-friendly price, and it gives you solid tech where it matters most.
Why you'll love it
- You're getting into a carbon race bike at an awesome price

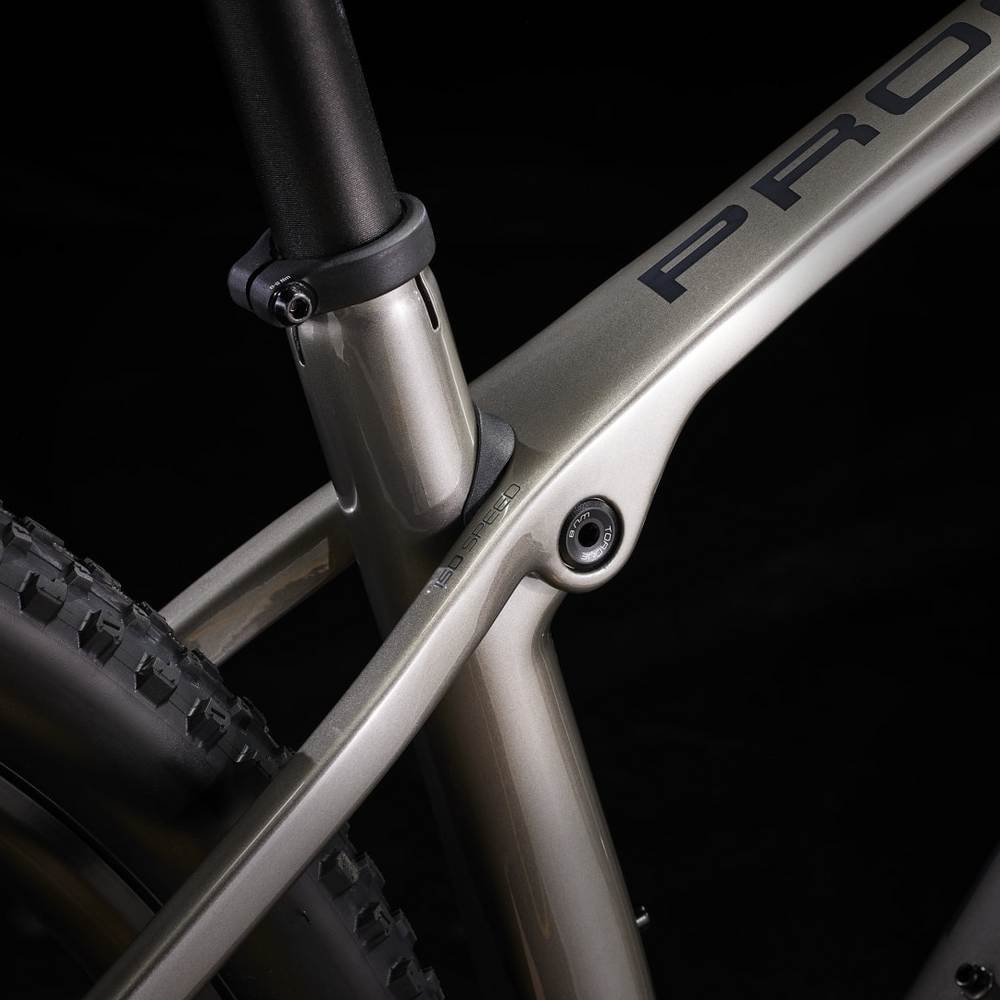

- The IsoSpeed decoupler and carbon frame makes it ride smoother than any other hardtail, so your body doesn't get beat up by trail chatter

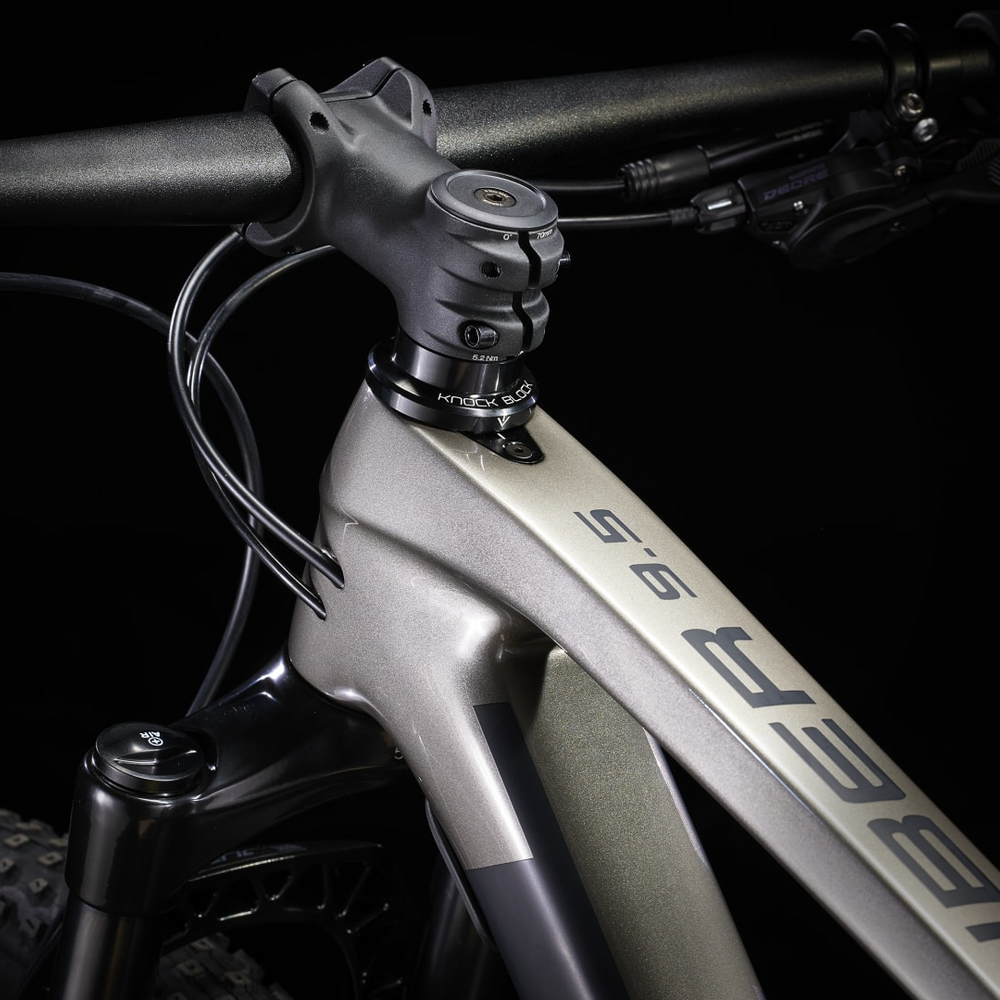

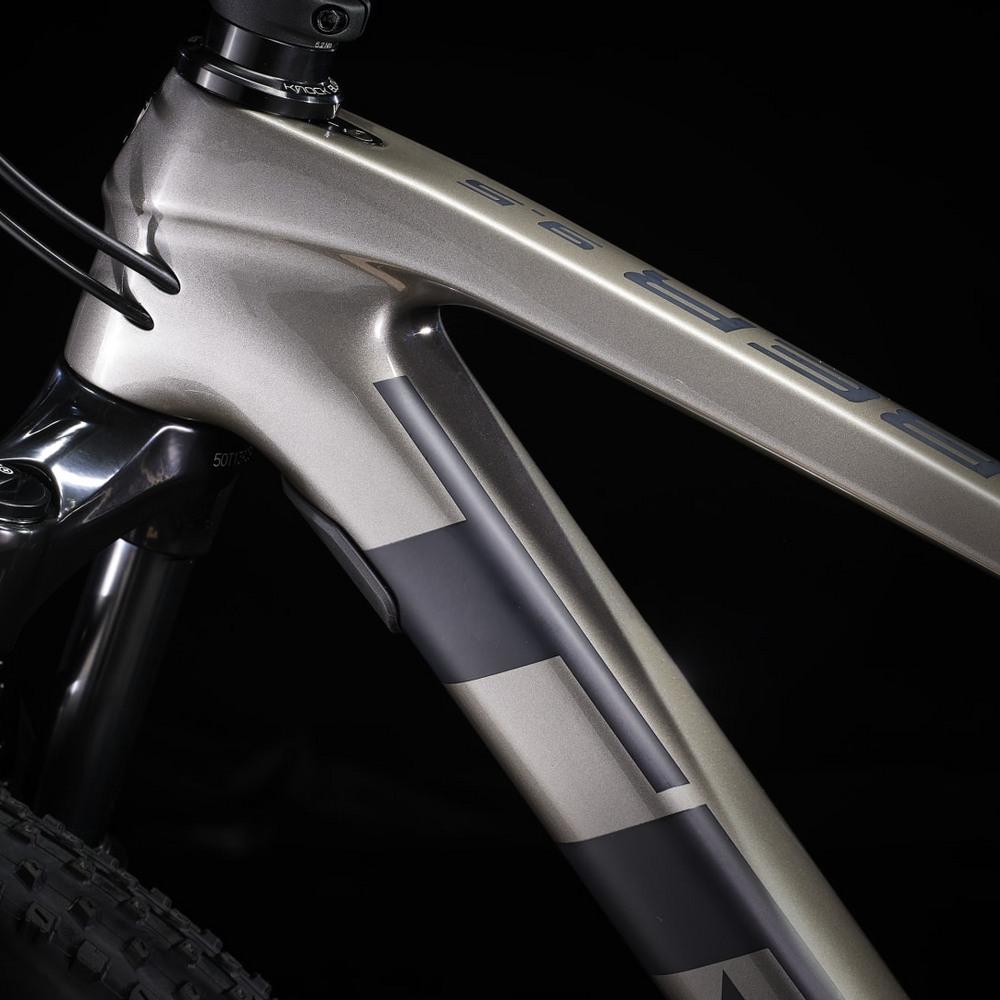

- You get a Straight Shot downtube for extra-stiff, responsive handling without added weight, and a Knock Block headset that protects against spinning bars and fork crowns
- The RockShox fork's Solo Air spring can easily be adjusted for a specific rider weight, and it's lighter than a coil spring
Specifications
*spec applies to all sizes unless otherwise noted
| Frame | OCLV Mountain Carbon, IsoSpeed, tapered head tube, Knock Block, internal control routing, balanced post mount brake, Boost148 |
|---|---|
| Fork | RockShox Judy SL, Solo Air spring, TurnKey lockout, tapered steerer, Boost110, 15mm Maxle Stealth, 100mm travel |
| Max compatible fork travel | 110mm (515 axle-to-crown) |
| Wheel front | Bontrager Kovee TLR rim/DC-611 Boost hub, 29'', 28H, 15 Gauge Spokes, Black/Black |
|---|---|
| Wheel rear | Bontrager Kovee TLR rim/MST148A Boost hub, 29'', 28H, 15 Gauge Spokes, Micro Spline Freehub, Black rim graphics, spokes, and nipples |
| Hub front | Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15mm thru axle |
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12mm thru axle |
| Skewer rear | Bontrager Switch thru axle, removable lever |

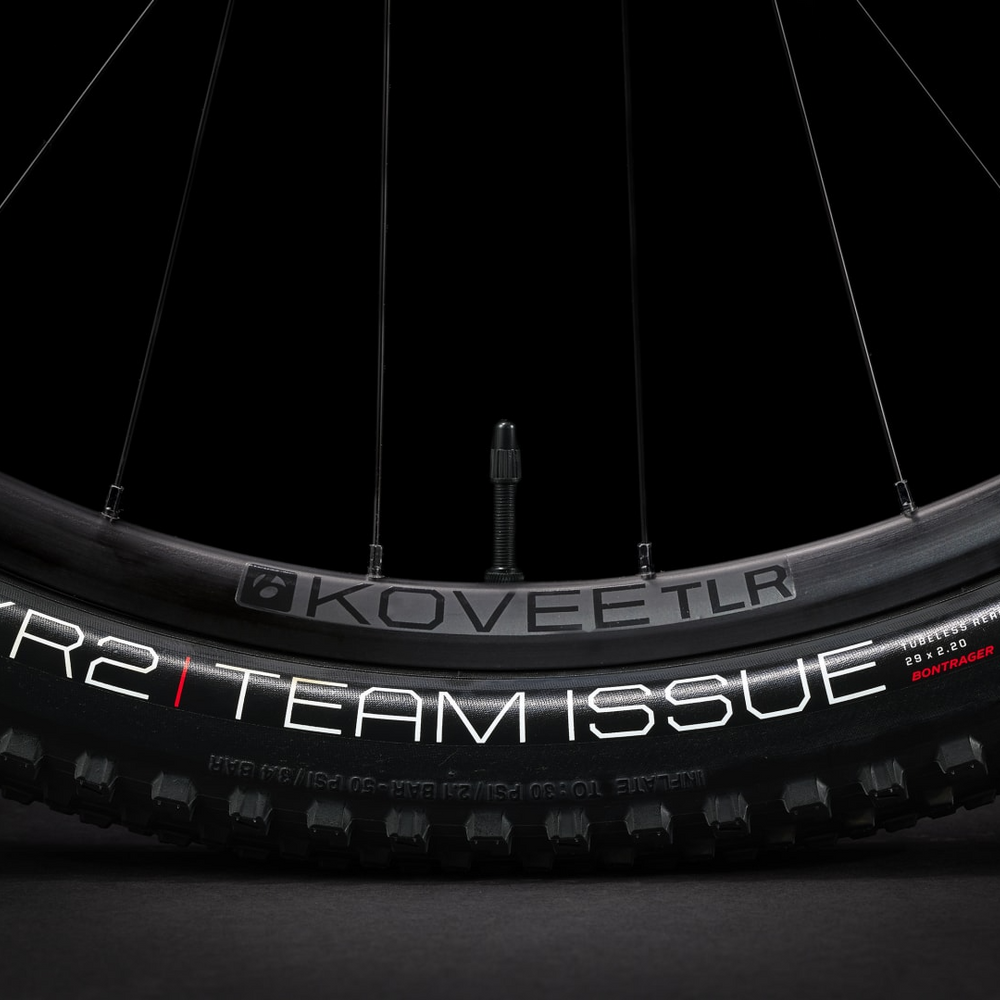

| Rim | Bontrager Kovee, double-wall, Tubeless Ready, 28-hole, 23mm width, presta valve |
| Tire | Bontrager XR2 Team Issue, Tubeless Ready, Inner Strength sidewall, aramid bead, 120 tpi, 29x2.20'' |
| *Tire part | Size: S, M, M/L, L, XL Bontrager TLR sealant, 6oz |
| Size: S, M, M/L, L, XL Bontrager TLR valve, 50mm |
|
| Rim strip | Bontrager TLR |
| Max tire size | Frame: 29x2.40" Fork: See manufacturer |
| Shifter | Shimano Deore M6100, 12 speed |
|---|---|

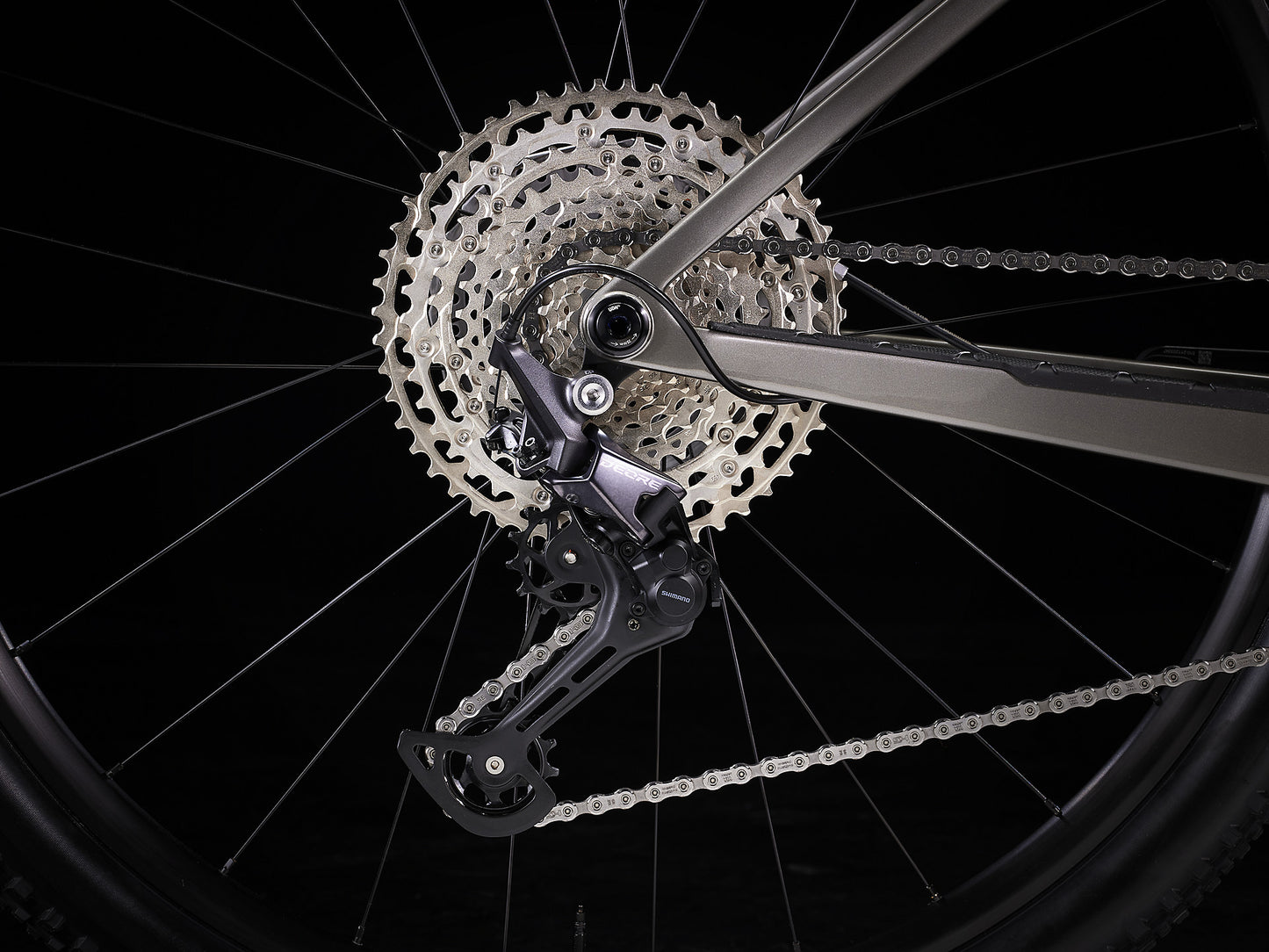

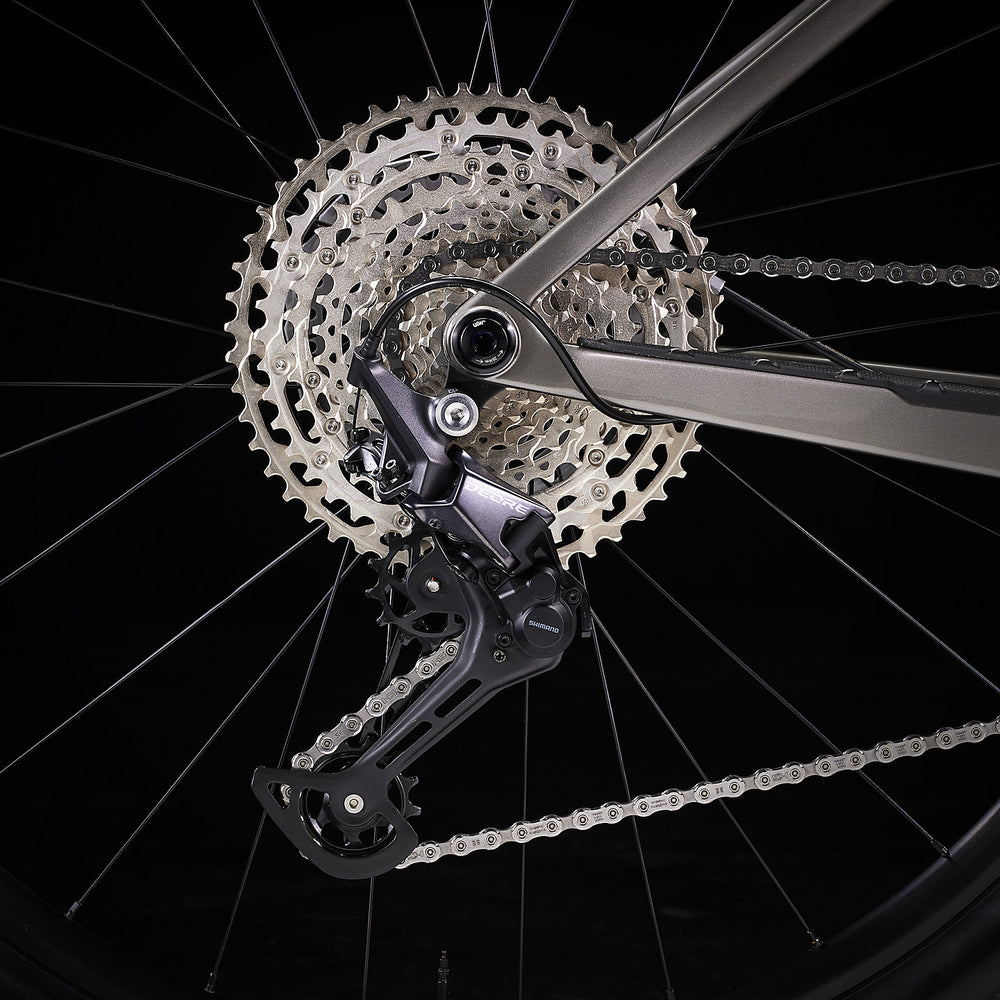

| Rear derailleur | Shimano Deore M6100, long cage |

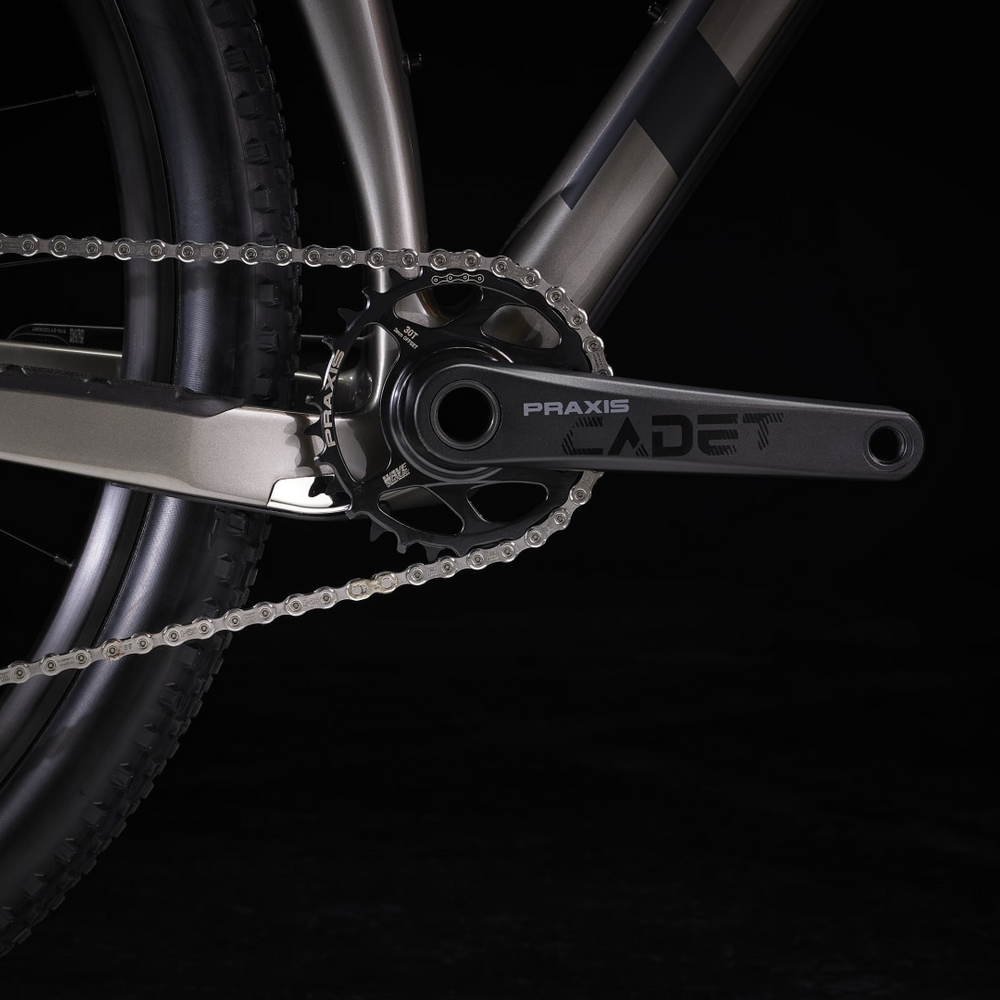

| *Crank | Size: S, M Shimano MT511, 30T steel ring, 52mm chainline, 170mm length |
| Size: M/L, L, XL Shimano MT511, 30T steel ring, 52mm chainline, 175mm length |
|
| Bottom bracket | Shimano MT500, 92mm, PressFit |
| Cassette | Shimano Deore M6100, 10-51, 12 speed |
| Chain | Shimano Deore M6100, 12 speed |
| Max chainring size | 36T, Min 30T |
| Saddle | Bontrager Arvada, steel rails, 138mm width |
|---|---|
| *Seatpost | Size: S Bontrager alloy, 31.6mm, 12mm offset, 330mm length |
| Size: M Bontrager alloy, 31.6mm, 12mm offset, 360mm length |
|
| Size: M/L, L, XL Bontrager alloy, 31.6mm, 12mm offset, 400mm length |
|
| *Handlebar | Size: S, M, M/L Bontrager Comp, alloy, 31.8mm, 5mm rise, 720mm width |
| Size: L, XL Bontrager Rhythm Comp, alloy, 31.8mm, 15mm rise, 750mm width |
|

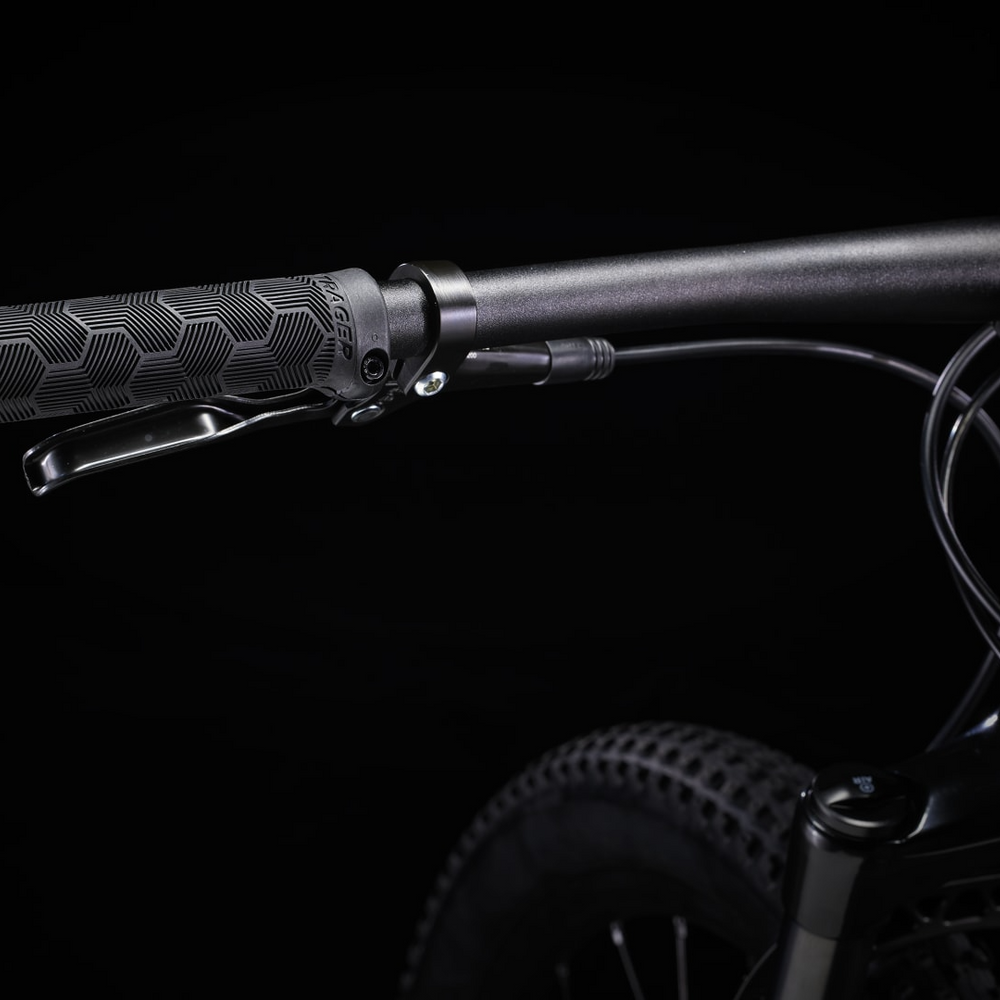

| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem | Size: S Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 60mm length |
| Size: M, M/L Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 70mm length |
|
| Size: L, XL Bontrager Rhythm Comp, 31.8mm, Knock Block, 0 degree, 80mm length |
|

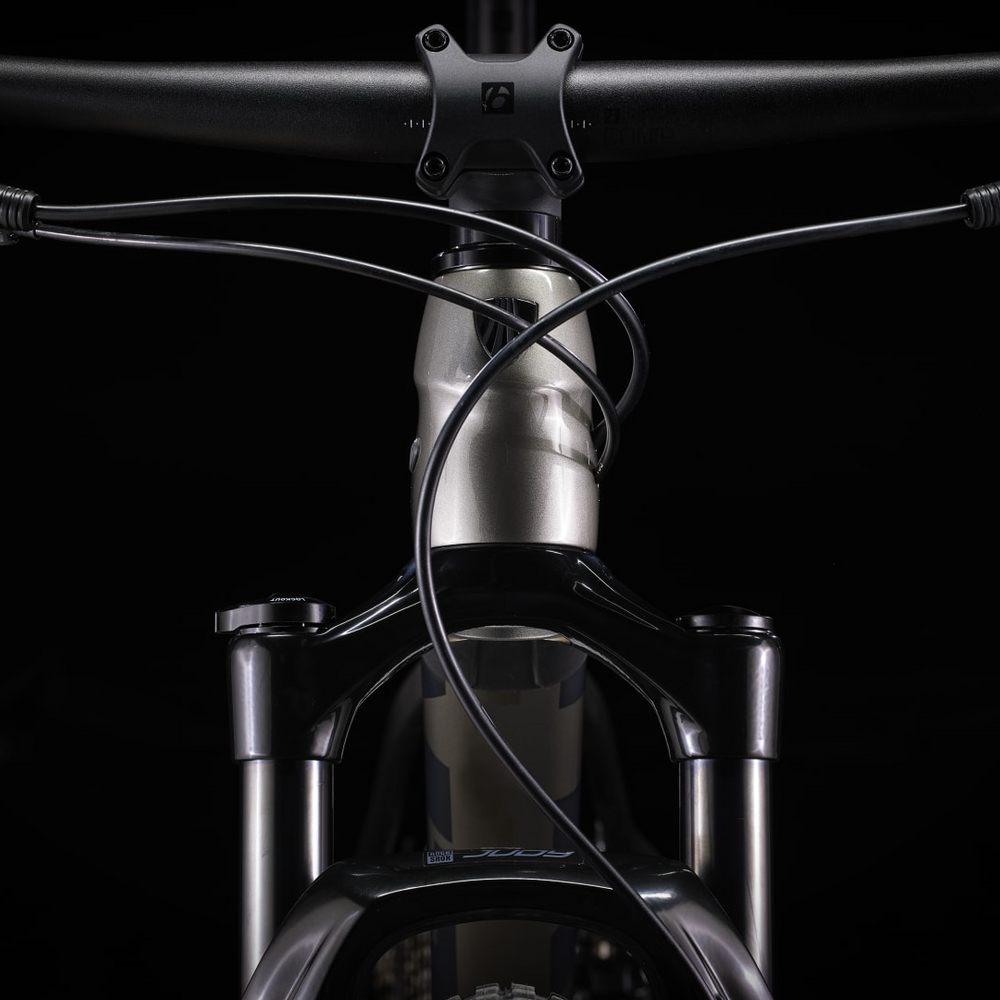

| Headset | Knock Block Integrated, 62-degree radius, cartridge bearing, 1-1/8'' top, 1.5'' bottom |

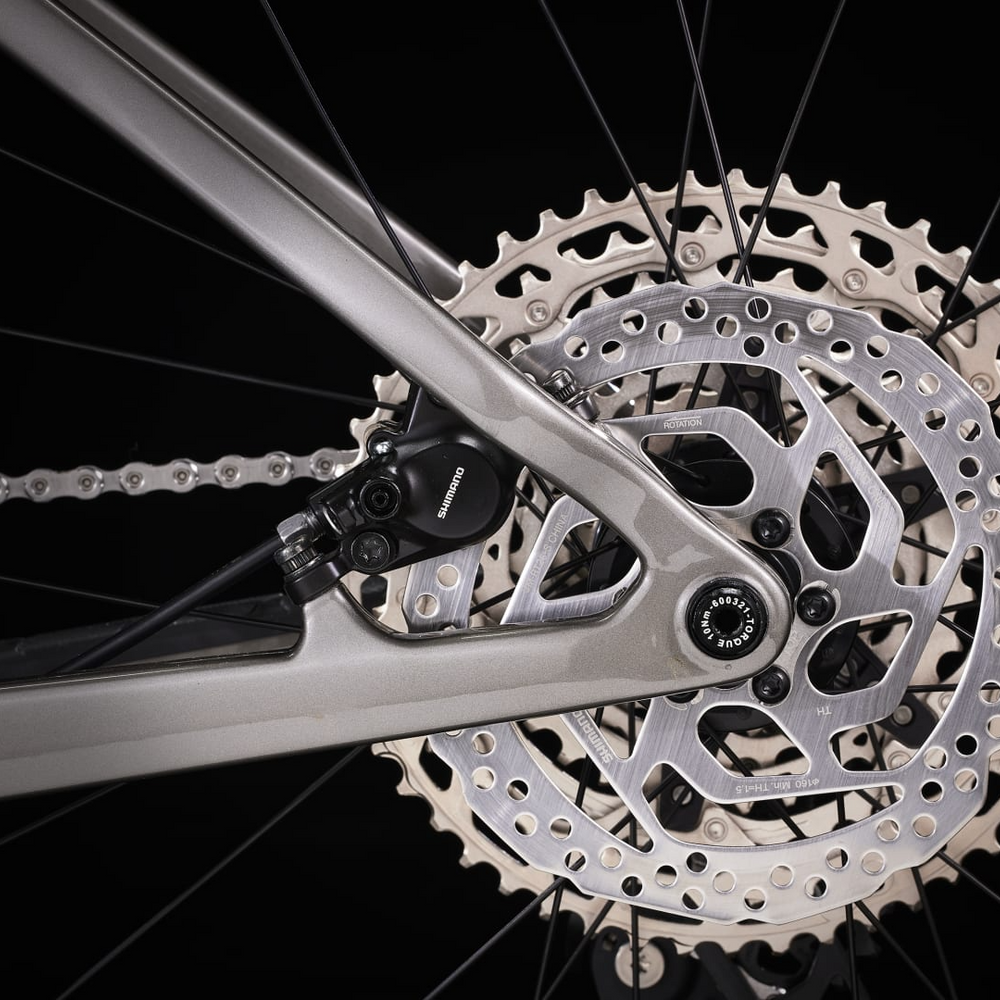

| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor | Size: S, M, M/L, L, XL Shimano RT26, 6-bolt,160mm |
| Size: L, XL Shimano RT26, 6-bolt,180mm |
| Weight | M - 25.66 lbs / 11.64 kg (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
