2024 Trek Top Fuel 5 - Radioactive Red (Small)
Regular price
R 45,000.00 ZAR
Tax included.
Shipping calculated at checkout.
Size
The Top Fuel 5 is a full-suspension mountain bike that’s equal parts efficient and capable. It soaks up rough, rugged descents but still flies like a rocket up hills and on flat stretches. The light and sturdy alloy frame is built with parts picked for performance and value, making this bike perfect for your first full-suspension trail bike.
It's right for you if...
You’ve fallen in love with mountain biking, and are ready for the confidence, traction and capability of a full-suspension bike. You’re looking for a rugged frame and solid parts spec that pack performance without breaking the bank.
The tech you get
A lightweight aluminium frame with internal storage, 120 mm RockShox Recon fork, 120 mm of rear travel with an X-Fusion Pro 2 shock and a wide-range 1x12 Shimano Deore drivetrain. Plus, tubeless-ready rims, hydraulic disc brakes and a dropper post.
The final word
A solid full suspension bike at a wallet-friendly price. The best-value bike in the Top Fuel line-up is made for having a blast going fast on just about any trail.
Why you'll love it
- This bike’s killer suspension set-up is both efficient and ready to party
- Mino Link lets you make small adjustments to your geometry quickly and easily, even mid-ride
- A sleek internal storage compartment gives you a versatile spot to stow tools and gear

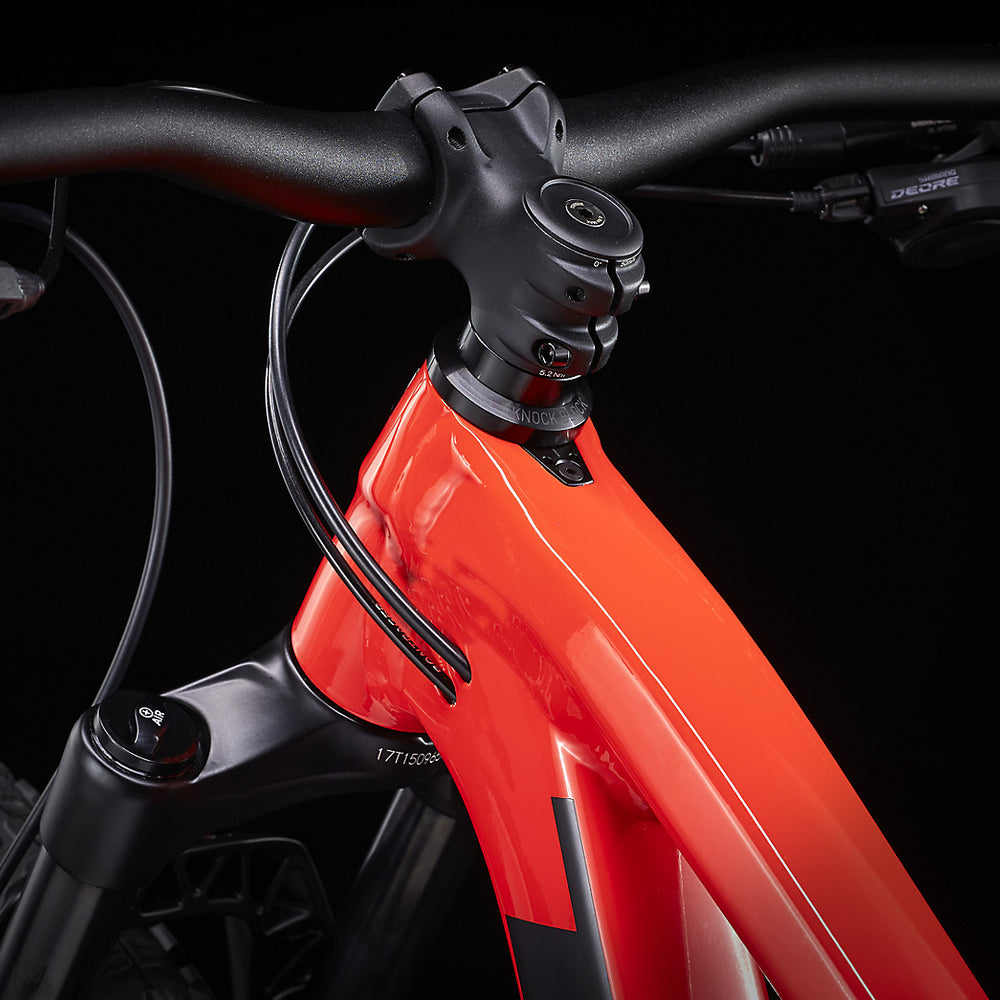

- New, removable Knock Block has a bigger steering angle to keep cables and hoses safe without sacrificing turning radius
Specifications
*spec applies to all sizes unless otherwise noted
Frameset
| Frame | Alpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel |
|---|---|
| Fork | RockShox Recon Silver RL, Solo Air, Motion Control damper, lockout, tapered steerer, 42 mm offset, Boost110, 15 mm Maxle Stealth, 120 mm travel |
| Shock | X-Fusion Pro 2, 2-position damper, 185x50 mm |
| Max compatible fork travel | 130mm (541mm axle-to-crown) |
Wheels
| Hub front | Bontrager alloy, 6-bolt, Boost110, 15 mm thru-axle |
|---|---|
| Hub rear | Bontrager alloy, sealed bearing, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru-axle |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Rim | Alex MD35, tubeless compatible, 32-hole, 35mm width, presta valve |
| *Tyre | Size: S, M, M/L, L, XL, XXL Bontrager XT3 Expert, wire bead, 60 tpi, 29x2.40'' |
| Size: S, M, M/L, L, XL, XXL Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29.x2.40" |
|
| *Tyre part | Size: S, M, M/L, L, XL, XXL Bontrager TLR sealant, 180 ml/6 oz |
| Size: S, M, M/L, L, XL, XXL Bontrager TLR valve, 50 mm |
|
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.5" Fork: see manufacturer |
Drivetrain
| Shifter | Shimano Deore M6100, 12-speed |
|---|---|
| Rear derailleur | Shimano Deore M6100, long cage |
| *Crank | Size: S, M, M/L, L Shimano MT512, 30T ring, 55 mm chain line, 170 mm length |
| Size: XL, XXL Shimano MT512, 30T ring, 55 mm chain line, 175 mm length |
|
| Bottom bracket | Shimano SM-BB52, 73 mm, threaded external bearing |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Max. chainring size | Max: 36T (oval - 34T) Min: 28T |
Components
| Saddle | Bontrager Arvada, steel rails, 138 mm width |
|---|---|
| *Seatpost | Size: S TranzX JD-YSI-22PLQ, 100 mm travel, internal routing, 34.9 mm, 346 mm length |
| Size: M, M/L TranzX JD-YSI-22PLQ, 150 mm travel, internal routing, 34.9 mm, 454 mm length |
|
| Size: L, XL, XXL TranzX JD-YSI-22PLQ, 170 mm travel, internal routing, 34.9 mm, 497 mm length |
|
| *Handlebar | Size: S, M, M/L, L, XL, XXL Bontrager alloy, 31.8 mm, 15 mm rise, 750 mm width |
| Size: S, M, L, XL, XXL Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 750 mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| Stem | Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length |
| Head set | Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Brake | Shimano MT200 hydraulic disc |
| *Brake rotor | Size: S, M, M/L, L, XL, XXL Shimano RT26, 6-bolt,180 mm |
| Size: S, M, M/L, L, XL, XXL Shimano RT26, 6-bolt,160 mm |
Weight
| Weight | M - 34.22 lbs / 15.52 kg |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
