2024 Trek Rail 9.7 Gen 4 - Galactic Grey

R 145,000.00 ZAR

R 119,900.00 ZAR
Tax included. Shipping calculated at checkout.
Size

Selling fast  - 2 left

I've found this at a better price

Pickup currently unavailable

Small

Biket Hillcrest

Pickup currently unavailable

11 Inanda Road
Hillcrest
Durban
KwaZulu-Natal
3650
South Africa

+27745442918

Rail 9.7 is a long-travel carbon electric mountain bike that gets you to the fun stuff faster. It feels and rides just like our rowdiest trail bikes, and it's built with the same trail-specific tech. The difference is that the powerful Bosch drive system zips up climbs so you can spend less time grinding and more time getting rad.

It's right for you if...

You’re looking for a super capable long-travel e-MTB that’s built to conquer techy runs and big drops. You want the light weight and responsive ride of an OCLV Mountain Carbon frame with a high-powered motor to get to more descents faster.

The tech you get

An OCLV Mountain Carbon frame with a 625 Wh Removable Integrated Battery, a 160 mm RockShox Domain fork, 150 mm of rear travel with a RockShox Deluxe Select+ shock and the latest from Bosch with smart system Performance Line CX capable of speeds up to 20 mph (25 km/h in Europe), including the new Bluetooth® LED remote for easy connectivity and all-in-one navigation and activity tracking through the eBike Flow app. A 1x12 Shimano SLX/XT drivetrain, Bontrager Line dropper post, powerful 4-piston brakes for confident descents and Bontrager Line Comp 30 29er wheels that are already completely tubeless-ready, including sealant.

The final word

Rail 9.7 hits the sweet spot of carbon performance and amazing value. It’s spec'd with quality trail-specific parts and a powerful Bosch drive system so you can send it through the rough stuff and motor right back up for another run.

Why you'll love it

  1. The Bosch motor gives you plenty of power for tackling steep climbs with the efficiency to keep exploring all day. Rider-friendly features like Walk Assist and e-MTB mode help you make the most of every ride
  2. Made with the same hard-charging frame tech as Remedy, like Mino Link adjustable geometry, a Straight Shot down tube for extra stiffness and Active Braking Pivot (ABP)
  3. Bosch's new smart system gives you all the same power and responsiveness with a new Bluetooth-connected LED remote and eBike Flow app that puts even more control and customisation at your fingertips

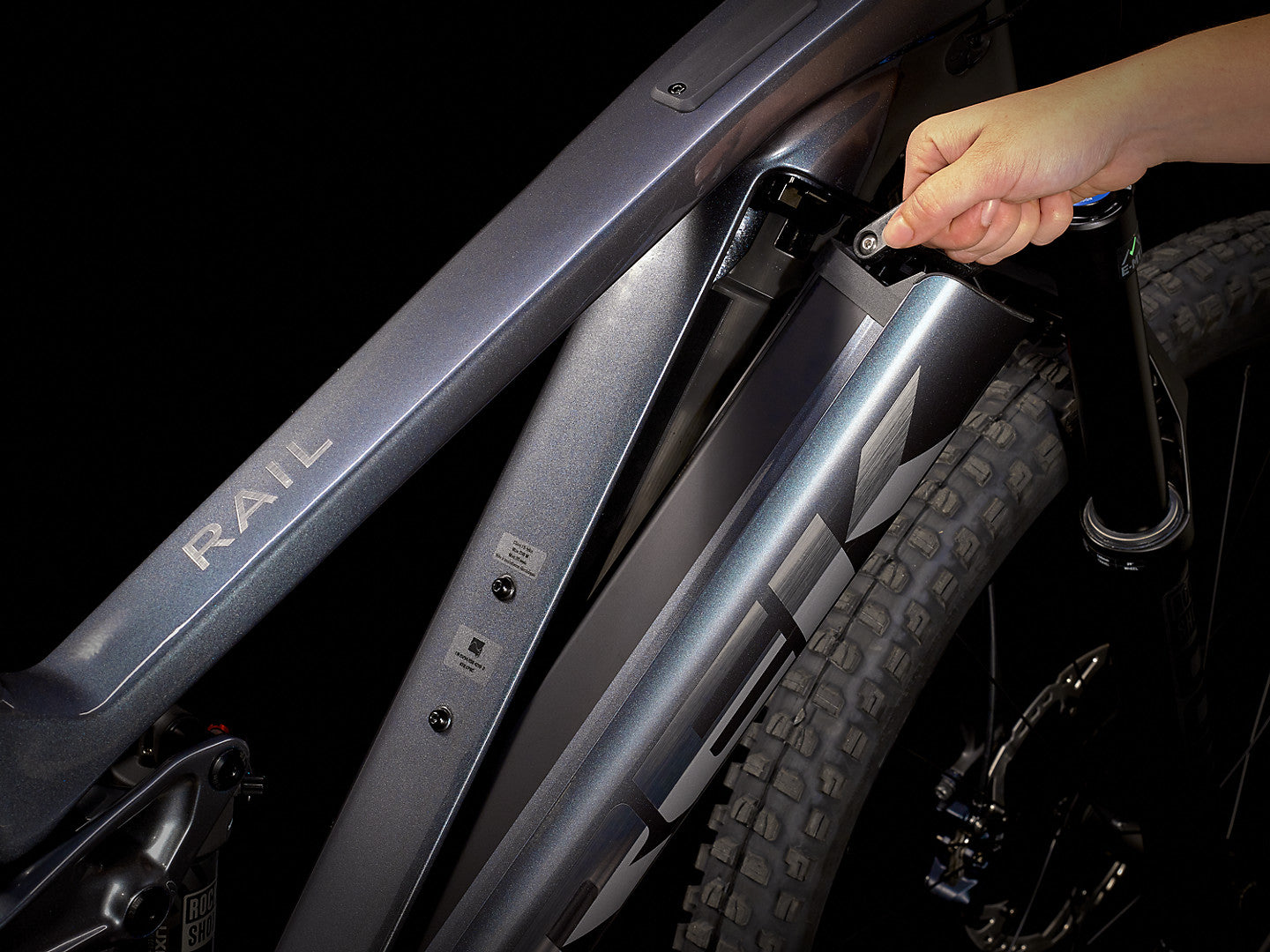

  4. Trek's Removable Integrated Battery (RIB) system looks great and is super user-friendly: it fully hides the battery in the frame for protection, makes it easy remove the battery without tools and lets you mount a water bottle cage.

*Please note – spec applies to all sizes unless listed separately

Frameset
expand_less
Frame OCLV Mountain Carbon main frame, 1.8'' lower head tube, Bosch System Controller-compatible, Removable Integrated Battery (RIB), Knock Block 2.0, guided internal routing, 34.9 mm seat tube, magnesium rocker link, Motor Armour, Mino Link, ABP, Boost148, 12 mm thru-axle, 150 mm travel
Fork RockShox Domain RC, DebonAir, Motion Control damper, lockout, 1.8" oversized tapered steerer, 44 mm offset, oversized crown for eMTB, Boost110, 15 mm Maxle Stealth, 160 mm travel
Shock RockShox Deluxe Select+ RT, 230 mm x 57.5 mm
Max compatible fork travel 170 mm (580 mm axle-to-crown)
Wheels
expand_less
Wheel front Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle
Wheel rear Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12 mm thru axle
Skewer rear Bontrager Switch thru-axle, removable lever
Tyre Bontrager XR5 Team Issue, Tubeless Ready, aramid bead, 120 tpi, 29x2.50"
Tyre part Bontrager TLR sealant, 180 ml/6 oz
Rim strip Bontrager TLR
Max tyre size Frame: 29x2.60" Fork: See manufacturer
Drivetrain
expand_less
Shifter Shimano SLX M7100, 12-speed
Rear derailleur Shimano XT M8100, long cage
Crank arm E*thirteen E*spec Plus, 34T, 160 mm length
Chainring E*thirteen E*spec, 34T alloy, 55 mm chainline
Cassette Shimano SLX M7100, 10-51, 12-speed
Chain Shimano SLX M7100, 12-speed
Max. chainring size 34T
Components
expand_less
Saddle Bontrager Arvada, hollow chromoly rails, 138 mm width
*Seatpost Size: S
TranzX JD-YSP39, 100 mm travel, internal routing, 34.9 mm
Size: M
TranzX JD-YSP39, 150 mm travel, internal routing, 34.9 mm
Size: L, XL
TranzX JD-YSP39, 170 mm travel, internal routing, 34.9 mm
Handlebar Bontrager Comp, alloy, 31.8 mm, 15 mm rise, 780 mm width
Grips Bontrager XR Trail Comp, nylon lock-on
Stem Bontrager Rhythm Comp, 31.8 mm, Knock Block, 0-degree, 50 mm length
Brake Shimano 4-piston hydraulic disc, M6100 lever, M6120 calliper
Brake rotor Shimano RT76, 6-bolt, 203 mm
Rotor size Max brake rotor sizes: Front see fork manufacturer, rear 200 mm
Accessories
expand_less
*Battery Size: S
Bosch PowerTube 625Wh, smart system
Size: M, L, XL
Bosch PowerTube 750Wh, smart system
Charger Bosch standard 2A, 110V, smart system
Motor Bosch Performance Line CX, smart system, magnesium motor body, 85 Nm, 20 mph or 32 km/h max assist (25 km/h max assist in EU and APAC)
Computer Bosch LED remote, smart system
Weight
expand_less
Weight M - 24.65 kg / 54.35 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).

We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.

Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
