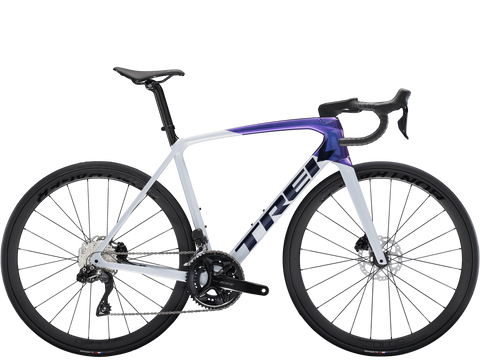

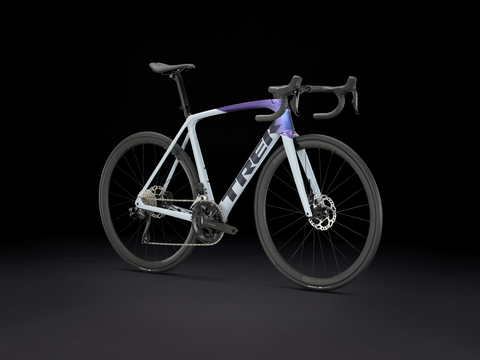

2024 Trek Émonda SL 6 - Plasma Pearl Grey/Purple Flip
The Émonda SL 6 Disc has all the advantages of an ultra-light carbon road bike, with the added benefit of aero tube shaping that help you ride faster on flats and up climbs, too. It features a Shimano 105 Di2 wireless electronic drivetrain for super fast, reliable shifting.
It's right for you if...
You're no stranger to long, fast rides. You want an ultra-light, aerodynamic bike with race-ready parts, including the performance boost of a 105 Di2 wireless electronic drivetrain and fast carbon wheels.
The tech you get

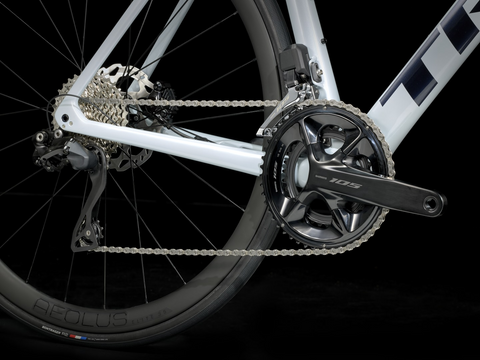

A lightweight and aerodynamic 500 Series OCLV Carbon frame and fork, a Shimano 105 Di2 2x12 wireless electronic drivetrain and Bontrager Paradigm Comp wheels. Disc brakes give you better stopping power and more precise modulation.
The final word
Yes, you can have it all: a super lightweight, aero frame for more speed on any terrain, exceptional handling characteristics, a top-quality wireless drivetrain and a great pair of carbon wheels – all without the sticker shock.
Why you'll love it
- The Wireless 105 Di2 delivers faster, smoother and more responsive shifts than ever
- Aerodynamic tube shaping makes this Émonda ready to roll wicked fast on flats and climbs alike
- This bike is fully capable of taking on the biggest climbs, steepest descents and fastest sprints
- Like every Émonda, it's light and fast – and it's backed by our lifetime warranty.
*Please note – spec applies to all sizes unless listed separately
| Frame | Ultralight 500 Series OCLV Carbon, Ride Tuned performance tube optimisation, tapered head tube, internal routing, DuoTrap S-compatible, flat-mount disc, 142x12 mm thru axle |
|---|---|
| Fork | Émonda SL full carbon, tapered carbon steerer, internal brake routing, flat-mount disc, 12x100 mm thru axle |
| Wheel front | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, 100x12 mm thru axle |
|---|---|
| Wheel rear | Bontrager Aeolus Elite 35, OCLV Carbon, Tubeless Ready, 35 mm rim depth, Shimano 11/12-speed freehub, 142x12 mm thru axle |
| Skewer front | Bontrager Switch thru axle, removable lever |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
| Tyre | Bontrager R2 Hard-Case Lite, aramid bead, 60 tpi, 700x28 mm |
| Max tyre size | 28mm |
| Shifter | Shimano 105 R7170, 12-speed |
|---|---|
| Front derailleur | Shimano 105 R7150 Di2, braze-on, down swing |
| Rear derailleur | Shimano R7150 |
| *Crank |
Size: 47 Shimano 105 R7100, 50/34, 165 mm length |
|
Size: 50, 52 Shimano 105 R7100, 50/34, 170 mm length |
|
|
Size: 54, 56, 58 Shimano 105 R7100, 50/34, 172.5 mm length |
|
|
Size: 60 Shimano 105 R7100, 50/34, 175 mm length |
|
| Bottom bracket | Praxis, T47 threaded, internal bearing |
| Cassette | Shimano 105 7101, 11-34, 12-speed |
| Chain | Shimano SLX M7100, 12-speed |
| Max. chainring size | 1x: 50T, 2x: 53/39 |
| *Saddle |
Size: 47, 50, 52 Bontrager Aeolus Comp, steel rails, 155 mm width |
|---|---|
|
Size: 54, 56, 58, 60 Bontrager Aeolus Comp, steel rails, 145 mm width |
|
| *Seatpost |
Size: 47, 50, 52, 54 Bontrager carbon seat mast cap, 20 mm offset, short length |
|
Size: 56, 58, 60 Bontrager carbon seat mast cap, 20 mm offset, tall length |
|
| *Handlebar |
Size: 47, 50 Bontrager Elite Bontrager Elite VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 38 cm width |
|
Size: 52 Bontrager Elite Bontrager Elite VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 40 cm width |
|
|
Size: 54, 56, 58 Bontrager Elite Bontrager Elite VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 42 cm width |
|
|
Size: 60 Bontrager Elite Bontrager Elite VR-C, alloy, 31.8 mm, 100 mm reach, 124 mm drop, 44 cm width |
|
| Handlebar tape | Bontrager Supertack Perf tape |
| *Stem |
Size: 47 Trek RCS Pro, -7-degree, 70 mm length |
|
Size: 50 Trek RCS Pro, -7-degree, 80 mm length |
|
|
Size: 52, 54 Trek RCS Pro, -7-degree, 90 mm length |
|
|
Size: 56 Trek RCS Pro, -7-degree, 100 mm length |
|
|
Size: 58, 60 Trek RCS Pro, -7-degree, 110 mm length |
|

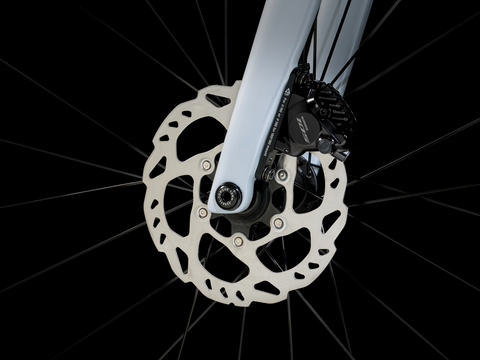

| Brake | Shimano 105 hydraulic disc |
| Brake rotor | Shimano RT70, CentreLock, 160 mm |
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
| Battery | Shimano BT-DN300 |
|---|---|
| Charger | Charging cable included |
| Weight | 56 – 8.50 kg/18.74 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
