It's right for you if...
You're looking for a high-end carbon e-road bike that's super light, super discreet and super quiet. Versatility is important, and you want the ability to roll on everything from smooth tarmac to rough gravel. Plus, you want to pair it up appropriately with cherry-picked components, like the wireless electronic SRAM Force eTap AXS drivetrain and carbon wheels.
The tech you get

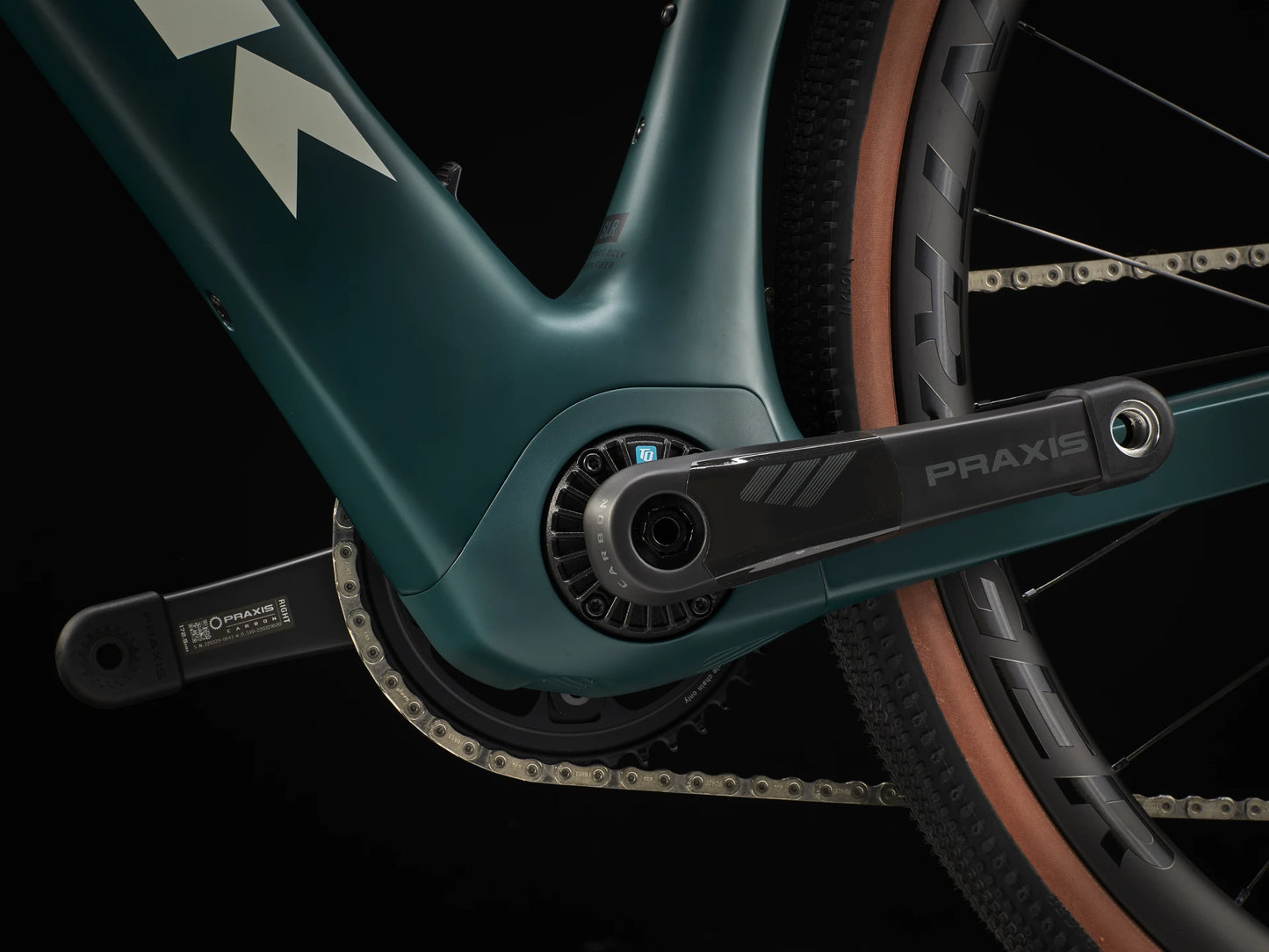

Our best and lightest 800 Series OCLV Carbon frame with rear IsoSpeed. A powerful 50 Nm TQ harmonic pin ring motor that assist up to 28 mph (25 km/h in Europe), a 360 Wh integrated battery, an integrated smart LED display and discreet top-mounted controls for toggling through assist modes. Aeolus Pro 3V OCLV Carbon wheels, SRAM Force eTap AXS wireless electronic drivetrain, carbon cranks, a vibration-absorbing Bontrager Pro Iso-Core handlebar and a RCS Pro stem that fully integrates your cables for a sleek look.
The final word
Our best Domane+ carbon frame and most discreet electric drive system gives you the added boost you want without sacrificing sleek looks and impressive performance. Wireless electronic SRAM Force eTap AXS delivers ultra-fast and precise shifts.
Why you'll love it
The TQ harmonic pin ring motor is impressively discreet, compact, light and whisper-quiet, and offers a powerful assist up to 28 mph (25 km/h in Europe)

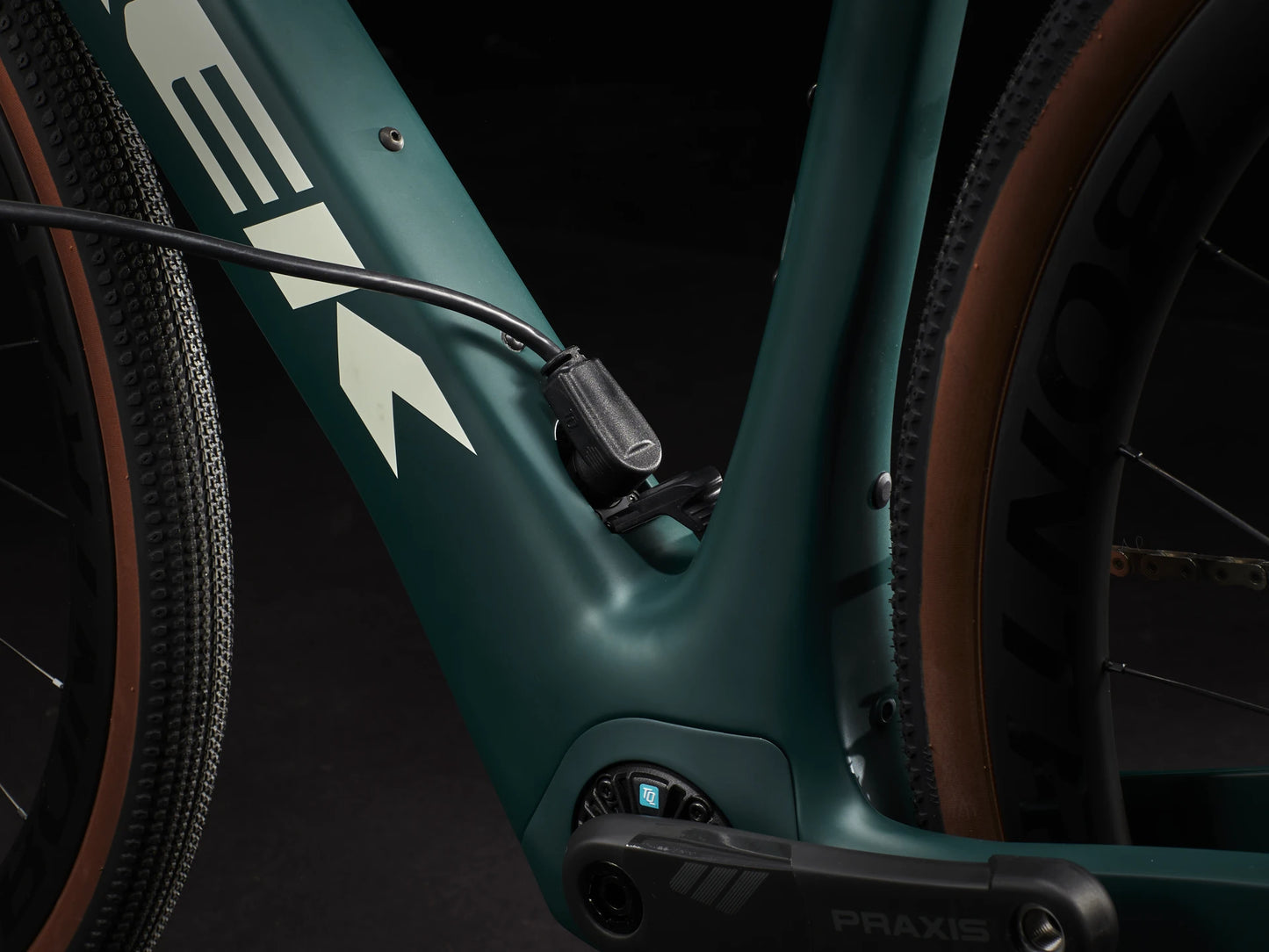

The smart charge port, sleek integrated display and discreet controls keep the bike looking and feeling like a traditional road bike
Stable endurance geometry partners with road-smoothing rear IsoSpeed that absorbs bumps in the road for a smoother, more comfortable ride
On long rides, you can add on a Range Extender that fits neatly in the bottle cage and gives you the power you need to go the extra distance

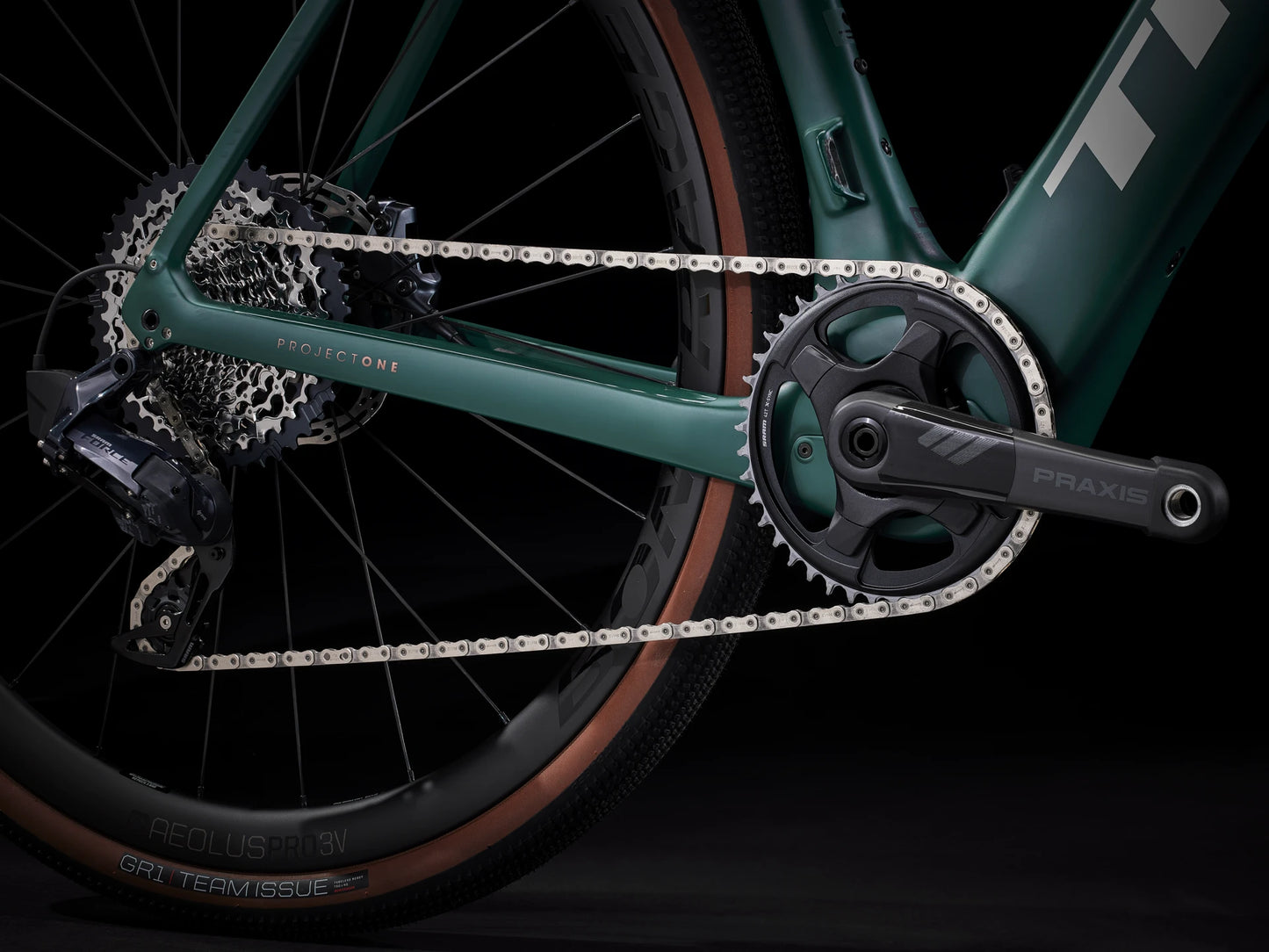

It comes equipped with an adventure-ready 1x wireless SRAM Force eTap AXS drivetrain and 40 mm gravel tyres for loose conditions
*Please note – spec applies to all sizes unless listed separately
Frameset

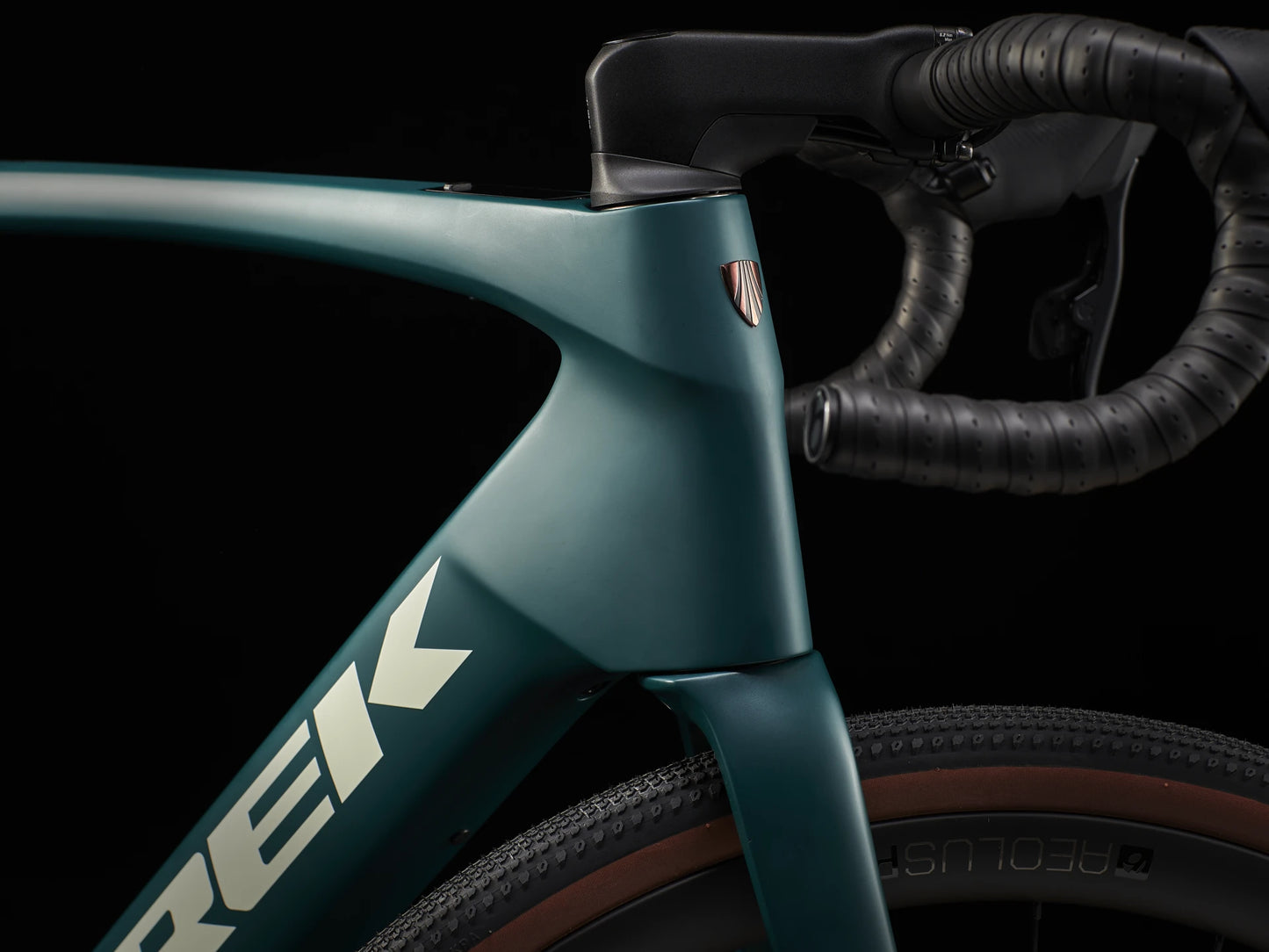

Frame 800 Series OCLV Carbon, TQ drive system, tapered head tube, rear IsoSpeed, internal routing, flat mount disc, mudguard mounts, 142x12 mm thru axle
Fork Domane+ carbon, tapered carbon steerer, internal brake routing, mudguard mounts, flat mount disc, 12x100 mm thru axle
Frame fit Endurance
Weight
Weight 56 - 12.50 kg / 27.56 lbs
Weight limit This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 125 kg (275 lb).
E-system
Battery TQ 360Wh
Charger TQ 4A charger

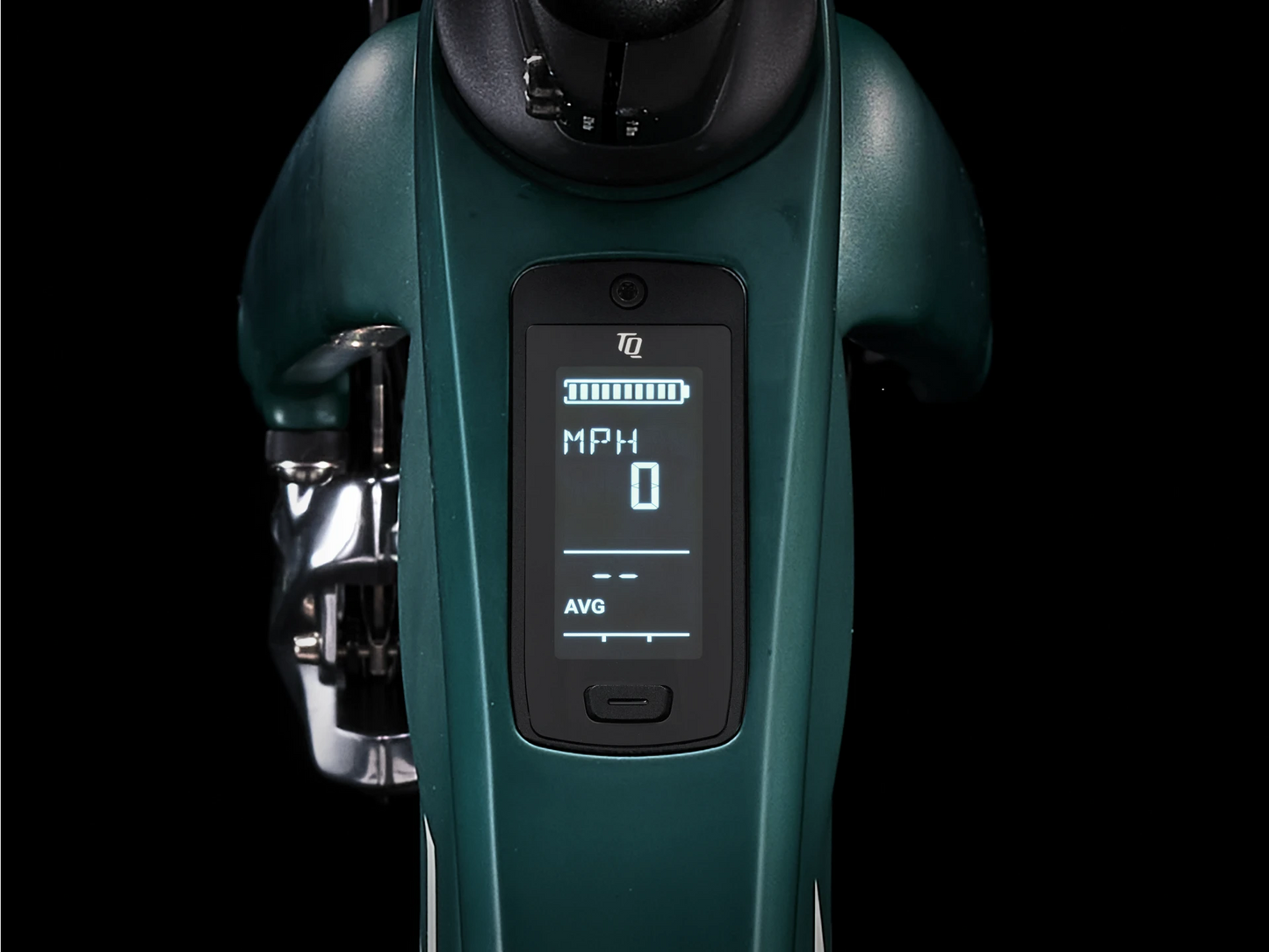

Computer TQ LED display with Bluetooth & ANT+ connectivity
Motor TQ-HPR50, 50 Nm, 250 watt maximum continuous rated power, 300 watt peak power
Drivetrain

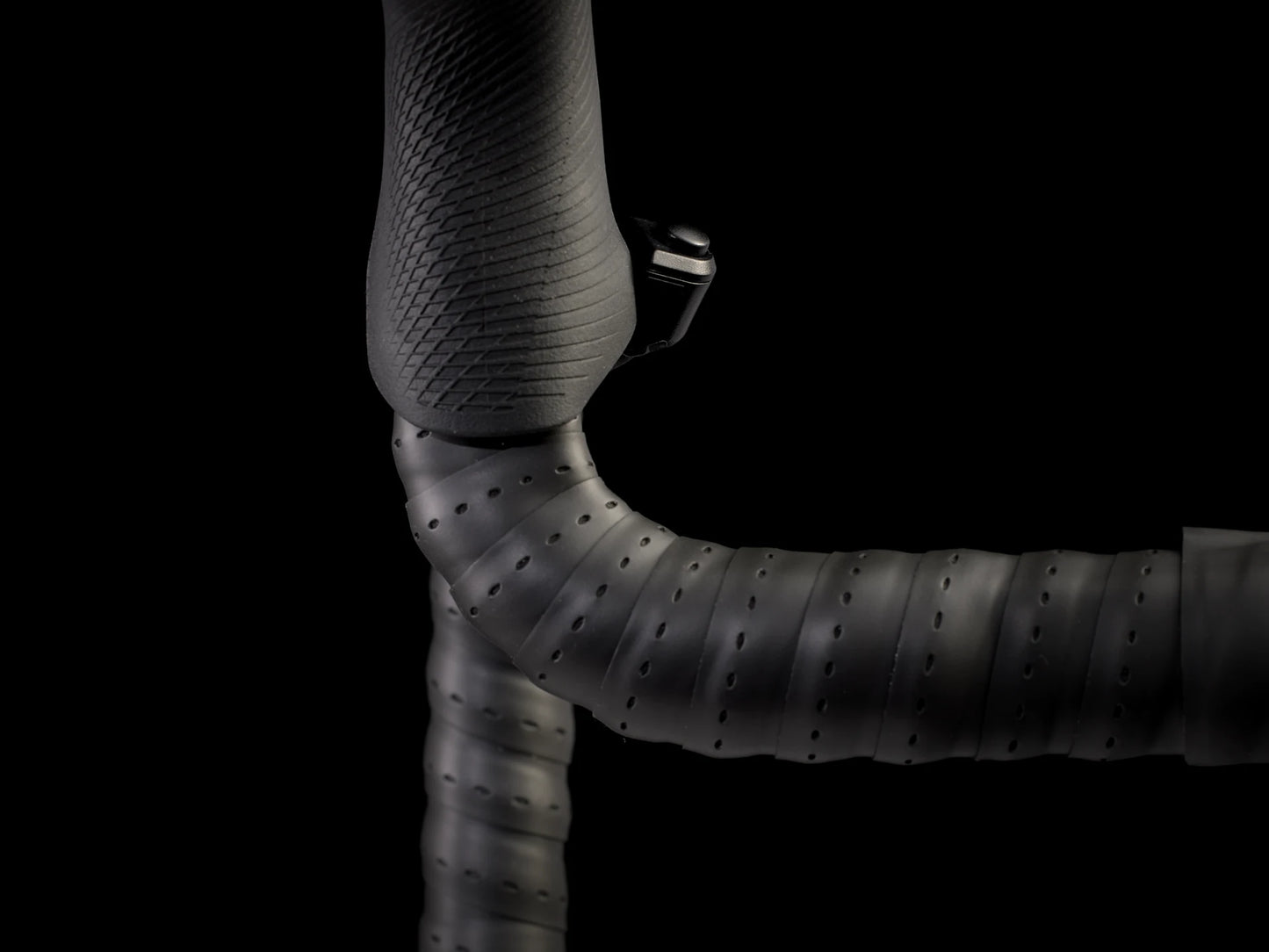

Shifter SRAM Force eTap AXS, 12-speed
Rear derailleur SRAM Force XPLR eTap AXS, 44T max cog
*Crank Size: 50, 52
Praxis Carbon, 170 mm length
Size: 54
Praxis Carbon, 172.5 mm length
Size: 58, 60
Praxis Carbon, 175 mm length
Chainring SRAM X-SYNC, 42T, alloy
Cassette SRAM XG-1271, 10-44, 12-speed
Chain SRAM Force, 12-speed
Max. chainring size 1x: 46T, 2x: 52/36
Wheels
Wheel front Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 100 x 12 mm thru axle
Wheel rear Bontrager Aeolus Pro 3V, OCLV Carbon, Tubeless Ready, 25 mm rim width, 142x12 mm thru axle
Skewer front Bontrager Switch thru-axle, removable lever
Skewer rear Bontrager Switch thru-axle, removable lever
Tyre Bontrager GR1 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 120 tpi, 700x40 mm
Tyre part Bontrager TLR sealant, 180 ml/6 oz
Rim strip Bontrager TLR
Max tyre size 40mm without mudguards, 35mm with mudguards
Components
*Saddle Size: 50, 52
Bontrager Verse Short Elite, hollow stainless steel rails, 155 mm width
Size: 54, 58, 60
Verse Short Elite, hollow stainless steel rails, 145 mm width
*Seatpost Size: 50, 52, 54
KVF aero carbon seat post, 20 mm offset, 280 mm length
Size: 58, 60
KVF aero carbon seat post, 20 mm offset, 320 mm length
*Handlebar Size: 50, 52

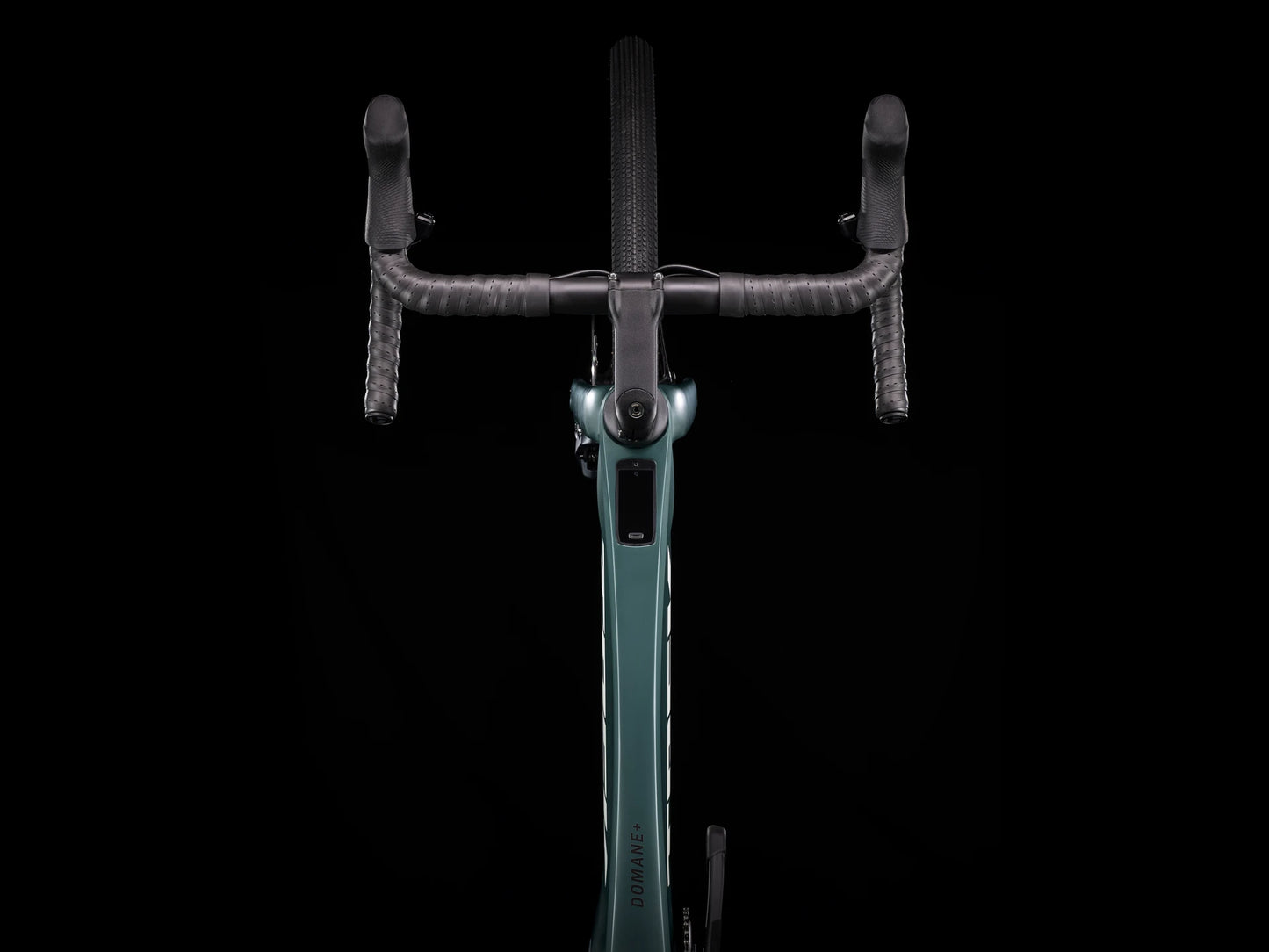

Bontrager Pro IsoCore VR-SF, 40cm
Size: 54
Bontrager Pro IsoCore VR-SF, 42cm
Size: 58, 60
Bontrager Pro IsoCore VR-SF, 44cm
Handlebar tape Bontrager Supertack Perf tape
*Stem Size: 50
Trek RCS Pro, -7-degree, 80 mm length
Size: 52, 54
Trek RCS Pro, -7-degree, 90 mm length
Size: 58
Trek RCS Pro, -7-degree, 100 mm length
Size: 60
Trek RCS Pro, -7-degree, 110 mm length

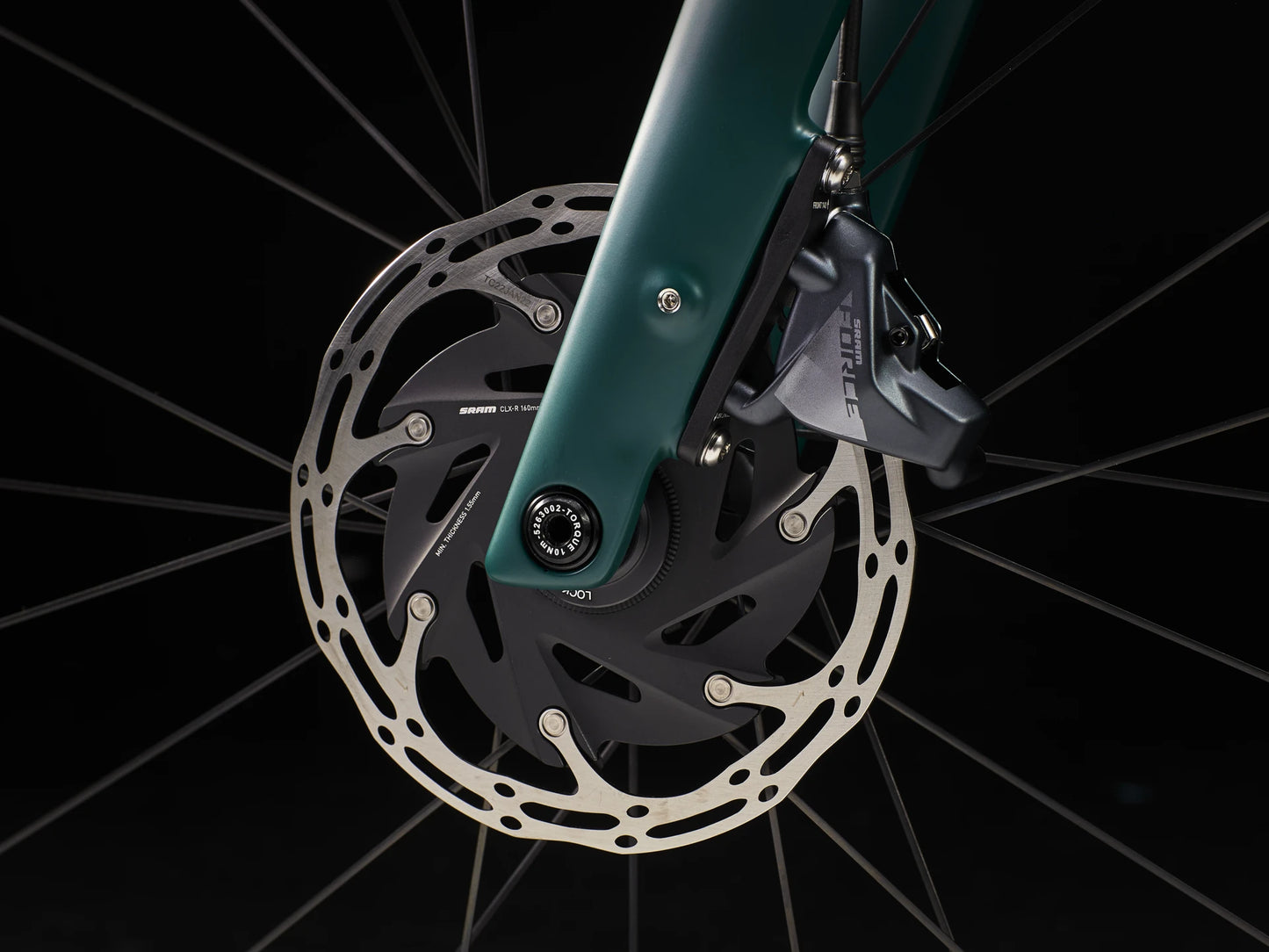

Brake SRAM Force AXS hydraulic disc
Brake rotor SRAM CentreLine X, CentreLock, round edge, 160 mm
Rotor size Max brake rotor sizes: 180mm front, 160mm rear
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
