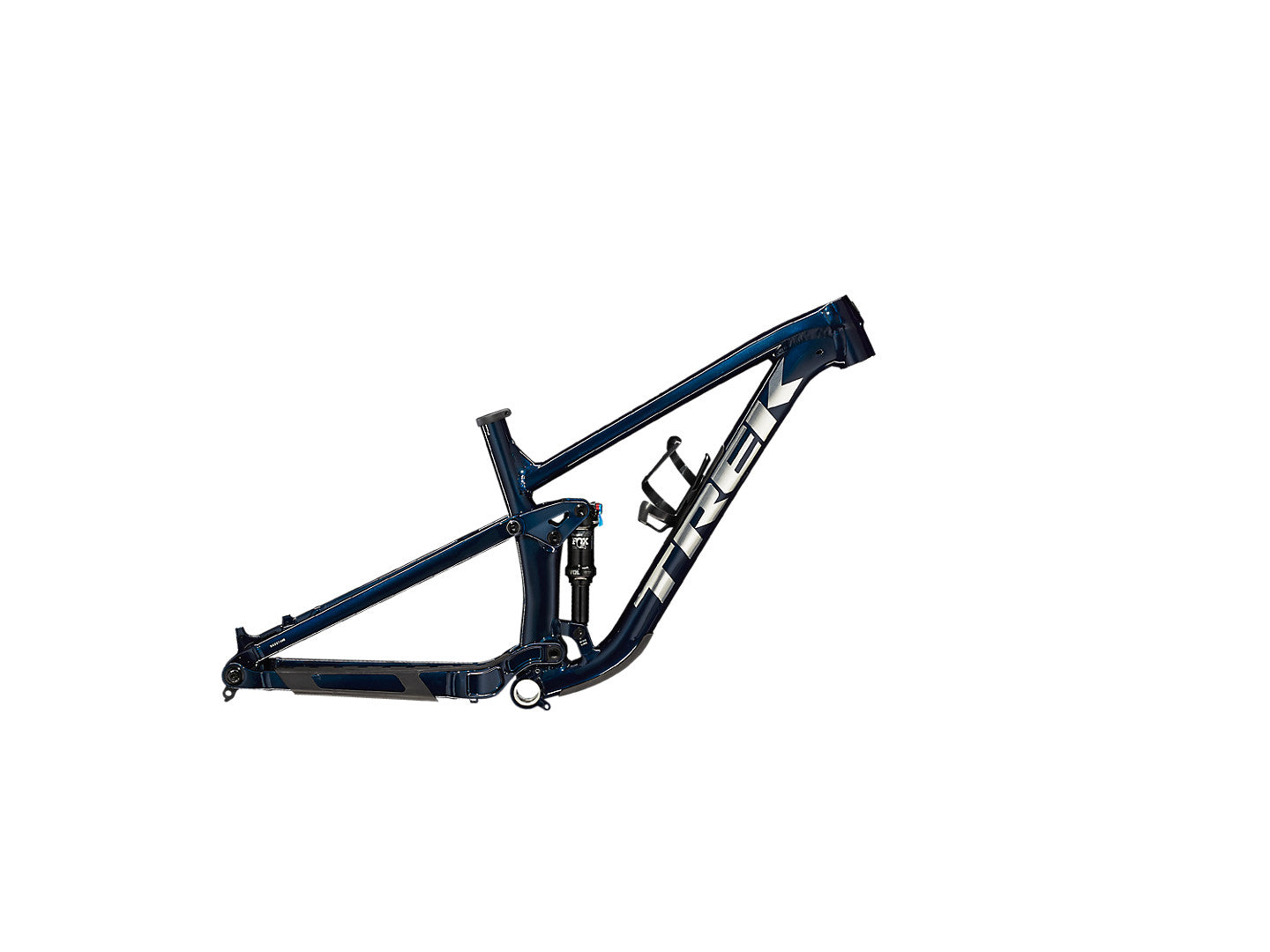

2023 Top Fuel AL Frame Set
The Top Fuel AL is an aluminium full suspension frame set ideal for building up a seriously fast, seriously fun country mountain bike. It’s made for multi-tasking, so you can spec it to shred singletrack, crush flowy trails and more.
It's right for you if...
You want to build up one single full-suspension bike that's super fun to ride on a wide variety of trails. You're looking for a frame that's designed for both efficiency and shred-ability.
The tech you get
A lightweight Alpha Platinum Aluminium frame internal storage, Mino Link adjustable geometry, a 120 mm Fox Performance Float shock with 2-position DPS damper, Knock Block 2.0 headset, 35 mm Bontrager Elite stem and internal cable routing. Designed for a 130 mm fork. Fits 2.4" tyres.
The final word
If you want a high-value foundation for a full suspension bike that's fast and fun on both flow trails and technical descents, the Top Fuel AL is the place to start.
Why you'll love it
- Alpha Platinum Aluminium is lightweight and trail-tough
- Efficient and capable: you can build up this frame set to suit a wide range of trails and terrain
- Mino Link lets you make small adjustments to your geometry quickly and easily, even mid-ride
- A sleek internal storage compartment gives you a versatile spot to stow tools and gear
- New, removable Knock Block has a bigger steering angle to keep cables and hoses safe without sacrificing turning radius.
*Please note – spec applies to all sizes unless listed separately
| Frame | Alpha Platinum Aluminium, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel |
|---|---|
| Shock | Fox Performance Float DPS, 3-position damper, 185 mm x 50 mm |
| Max compatible fork travel | 130mm (541mm axle-to-crown) |
| Skewer rear | Bontrager Switch thru-axle, removable lever |
|---|---|
| Max tyre size | Frame: 29x2.5" |
| Max. chainring size | Max: 36T (oval – 34T) Min: 28T |
|---|
| Stem | Bontrager Elite, 35 mm, 0-degree, 45 mm length |
|---|---|
| Head set | Knock Block 2.0 Integrated, 72-degree radius (includes infinite-radius chip), sealed cartridge bearing, 1-1/8" top, 1.5" bottom |
| Rotor size | Max brake rotor size: 180mm rear |
| Weight | M - 3.74 kg/8.25 lb |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
