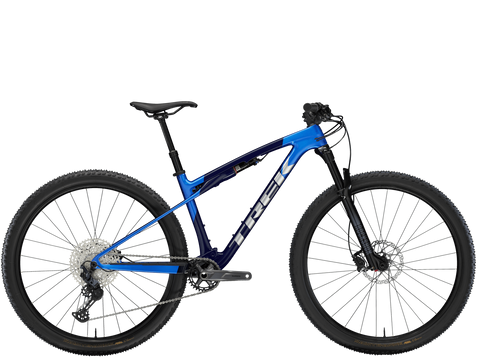

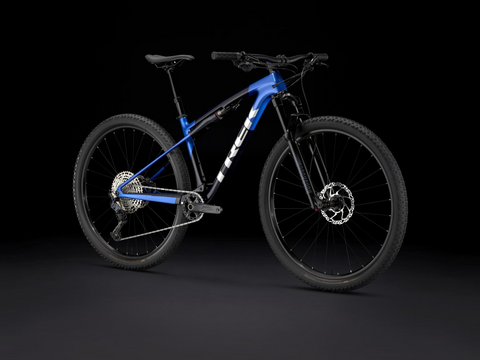

2024 Trek Supercaliber SL 9.6 Gen 2 - Alpine Blue
Pickup currently unavailable
The Supercaliber SL 9.6 is a carbon cross-country mountain bike built for rocketing over singletrack and scorching the way to the finish line. It's built with a carbon frame that balances stiffness with compliance for power when you need it most, while IsoStrut rear suspension gives you just enough squish to soften the blow through the rough terrain peppering modern XC courses. It comes ready to rip with a 12-speed Shimano SLX drivetrain, so you've got a gear for every climb and breakaway.
It's right for you if...
You're looking for a cross-country race bike and want a little suspension to sweeten the ride. You want the benefits of a carbon frame and IsoStrut, and want workhorse components you can count on and upgrade over time.
The tech you get
An SL OCLV Mountain Carbon frame with modern XC geometry. 110 mm of front suspension from a RockShox Recon Gold RL fork with DebonAir spring and Motion Control damper and 80 mm of IsoStrut rear suspension from a RockShox SIDLuxe shock. A Shimano drivetrain with a blend of Deore and SLX components, OCLV Carbon handlebars and a dropper post. Plus, the reliable stopping power of Shimano hydraulic disc brakes.
The final word
If you're at home between the tape and want an XC steed that can keep up, the Supercaliber SL 9.6 is for you. It's bred for cross-country, with modern race geometry and just enough supple suspension to smooth out the rough stuff and keep you hammering until you cross the line.
Why you'll love it
- You get a 110 mm fork and 80 mm of IsoStrut rear suspension that partners with slacker, capable geometry for handling the roots and rocks of modern XC courses

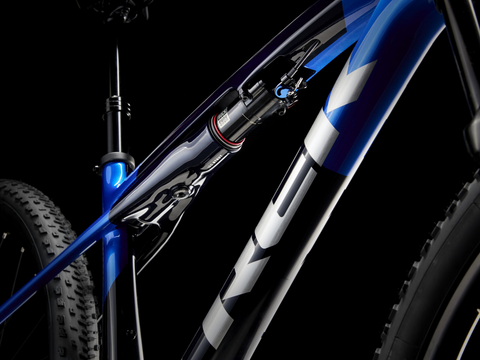

- IsoStrut gives you tunable, damped suspension without missing out on efficiency for hammering up climbs at top speed
- The frame's SL OCLV Mountain Carbon gives you the vibration damping and stiff responsiveness of carbon with a smaller price tag

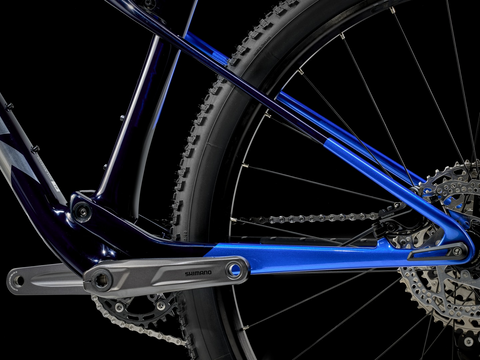

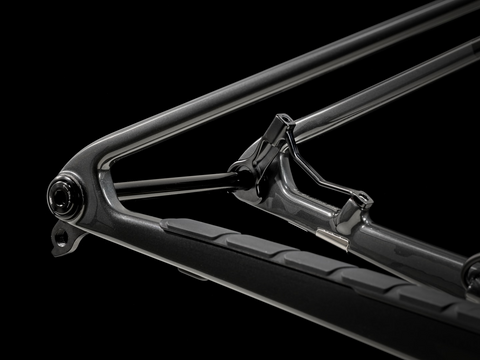

- Pivotless seat stays save on weight and actively bend to help soak up trail chatter
- The 12-speed Shimano drivetrain gives you a huge range of gears, so you can ease the ups in the big ring or stomp to the front in the flats.
*Please note – spec applies to all sizes unless listed separately
| Frame | SL OCLV Mountain Carbon, IsoStrut, UDH, 80 mm travel |
|---|---|
| Fork | RockShox Recon Gold RL, DebonAir spring, Motion Control damper, lockout, tapered steerer, 42mm offset, Boost110, 15 mm Maxle Stealth, 100 mm travel |

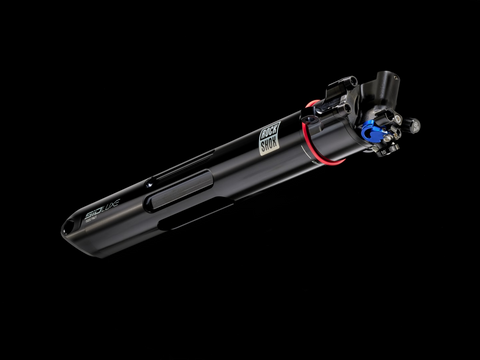

| Shock | Trek IsoStrut, RockShox SIDLuxe, 2-position remote damper |
| Max compatible fork travel | 120 mm (533 mm axle-to-crown) |

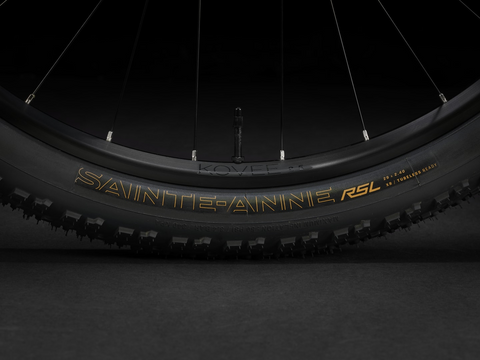

| Wheel front | Bontrager Kovee Comp 23, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle |
|---|---|
| Wheel rear | Bontrager Kovee Comp 23, Tubeless Ready, Shimano Microspline freehub, Rapid Drive 108, Boost148 |
| Tyre part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tyre size | Frame: 29x2.40", Fork: See manufacturer |
| Shifter | Shimano Deore M6100, 12-speed |
|---|---|

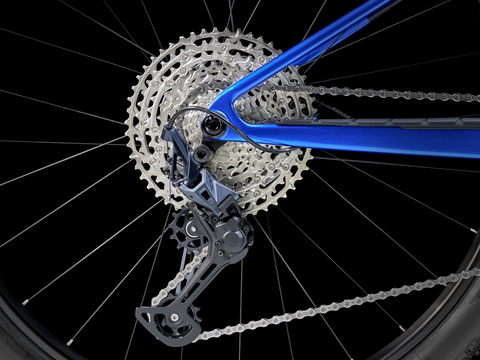

| Rear derailleur | Shimano SLX M7100, long cage |

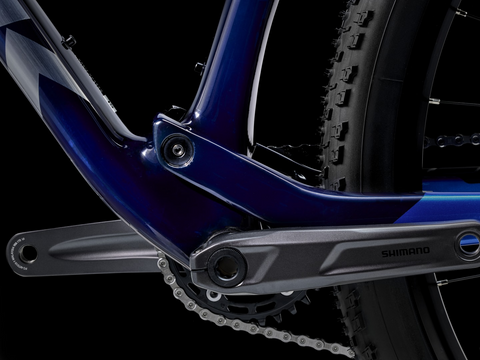

| *Crank |

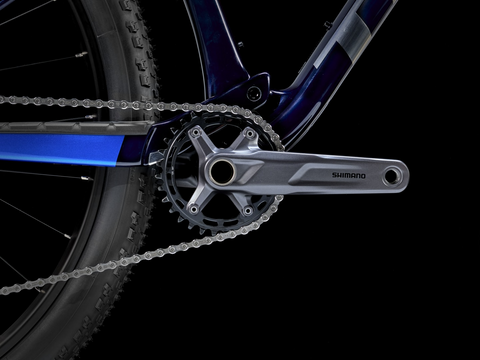

Size: S, M Shimano MT512, 32T, 55 mm chain line, 170 mm |
|
Size: M/L, L, XL Shimano MT512, 32T, 55 mm chain line, 175 mm |
|
| Bottom bracket | Shimano MT500, 92 mm, PressFit |
| Cassette | Shimano Deore M6100, 10-51, 12-speed |
| Chain | Shimano Deore M6100, 12-speed |
| Max. chainring size | 1x: 38T, min 30T |
| Saddle | Bontrager Verse Comp, steel rails, 145 mm width |
|---|---|
| *Seatpost |
Size: S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 31.6 mm, 310 mm length |
|
Size: M, M/L Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 31.6 mm, 410 mm length |
|
|
Size: L, XL Bontrager Line Dropper, 170 mm travel, MaxFlow, internal routing, 31.6 mm, 450 mm length |
|
| *Handlebar |
Size: S Bontrager Comp, alloy, 31.8 mm, 5 mm rise, 720 mm width |
|
Size: M, M/L, L, XL Bontrager Rhythm Comp, alloy, 31.8 mm, 15 mm rise, 750mm width |
|
| Grips | Bontrager XR Trail Comp, nylon lock-on |
| *Stem |
Size: S Bontrager alloy, 31.8 mm, Blendr-compatible, 7-degree, 50 mm length |
|
Size: M, M/L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 60 mm length |
|
|
Size: L Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 70 mm length |
|
|
Size: XL Bontrager Elite, 31.8 mm, Blendr-compatible, 7-degree, 80 mm length |
|

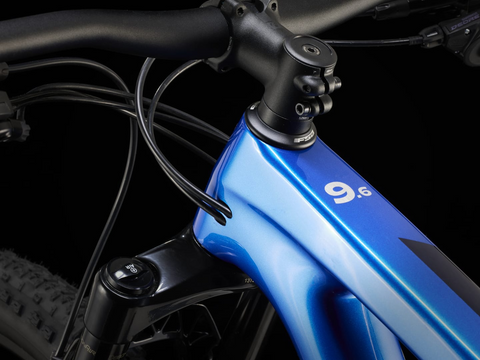

| Head set | FSA IS-2, 1-1/8" top, 1.5" bottom |
| Brake | Shimano hydraulic disc, MT501 lever, MT500 caliper |
| *Brake rotor |
Size: S, M, M/L, L, XL Shimano RT54, CentreLock, 160 mm |
|
Size: S, M, M/L, L, XL Shimano RT54, CentreLock, 180 mm |
|
| Rotor size | Max brake rotor sizes: 160 mm front and rear |
| Weight | M - 13.10 kg/28.89 lb (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
