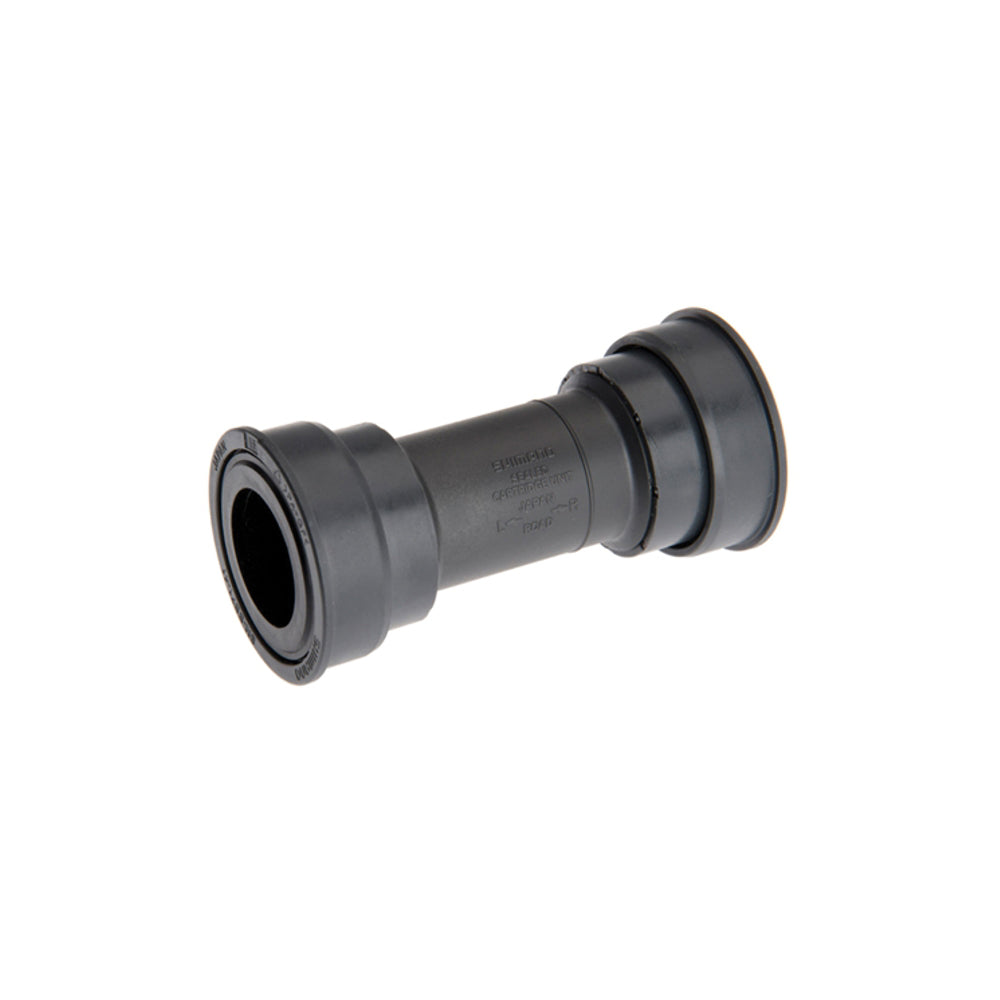

Shimano Smbb7141B Press Fit Bb For Road
R 499.00
Shimano SM-BB71-41B is a press fit bottom bracket for the installation of a Hollowtech II compatible crank into a road frame with 86.5 mm case width. Per usual with Hollowtech II, the bearings have a diameter of 24 mm, as this gives the best combination of rotational efficiency, stiffness, load capacity, tightness and weight even with press fit bearings. SM-BB71-41B bottom brackets are recommended for older 10-speed road and cyclocross cranks.
Shimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.
Specifications:
- Application:
- Road, Cyclocross
- Type:
- PressFit BB86
- Shell Diameter:
- 41 mm
- Shell Width:
- 86.5 mm
- Axle Diameter:
- 24 mm (Hollowtech II)
Technical Information:
- Bearings:
- steel
- Bottom Bracket Cup Material:
- synthetic resin
Compatibility:
Recommended for:- Ultegra FC-6700, FC-6700 G, FC-6750, FC-6750 G, FC-6703, FC-6703 G
- 105 FC-5700, FC-5750, FC-5703
- Tiagra FC-4600, FC-4650, FC-4603
- Sora FC-3550, FC-3503
- FC-CX50
- FC-R603, FC-R563, FC-R460, FC-R350
Technology:
Hollowtech IIShimano Hollowtech II is a crank bottom bracket system designed to achieve an ideal ratio of stiffness, weight and rotational efficiency. It is based on an integration of the bottom bracket and the right crank arm and works with a 24 mm axle or bearing diameter, which has proven to be optimal in terms of stability. In many cases, the bearing cups are on the outside so that the load is better distributed. High-quality precision seals ensure a long service life.
Manufacturer Number:
I-SMBB7141BContents:
- 1 x Shimano SM-BB71-41B right bearing cup, with bearings
- 1 x Shimano SM-BB71-41B left bearing cup, with bearings
- 1 x Shimano bottom bracket sleeve
