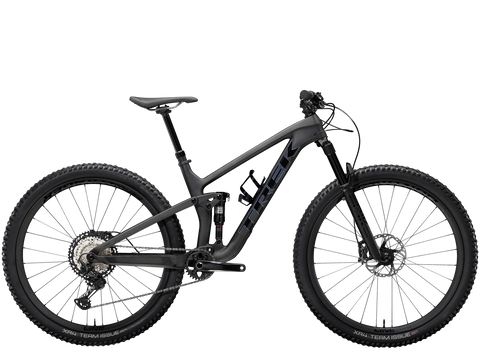

2023 Trek Top Fuel 9.8 XT
Pickup currently unavailable
Top Fuel 9.8 is a full suspension carbon mountain bike for riders who don't settle. Not for parts nor for one style of riding. It combines a high-end component package with a low-weight carbon frame for one unbelievably fun rig that's fast on flow and fun to ride on techy singletrack.
It's right for you if...
You’re looking for a do-it-all full-suspension mountain bike that's efficient and fast, but doesn't shy away from some bigger stuff. You want the added stiffness and weight savings of a carbon frame, but don't mind saving some money on the parts.
The tech you get

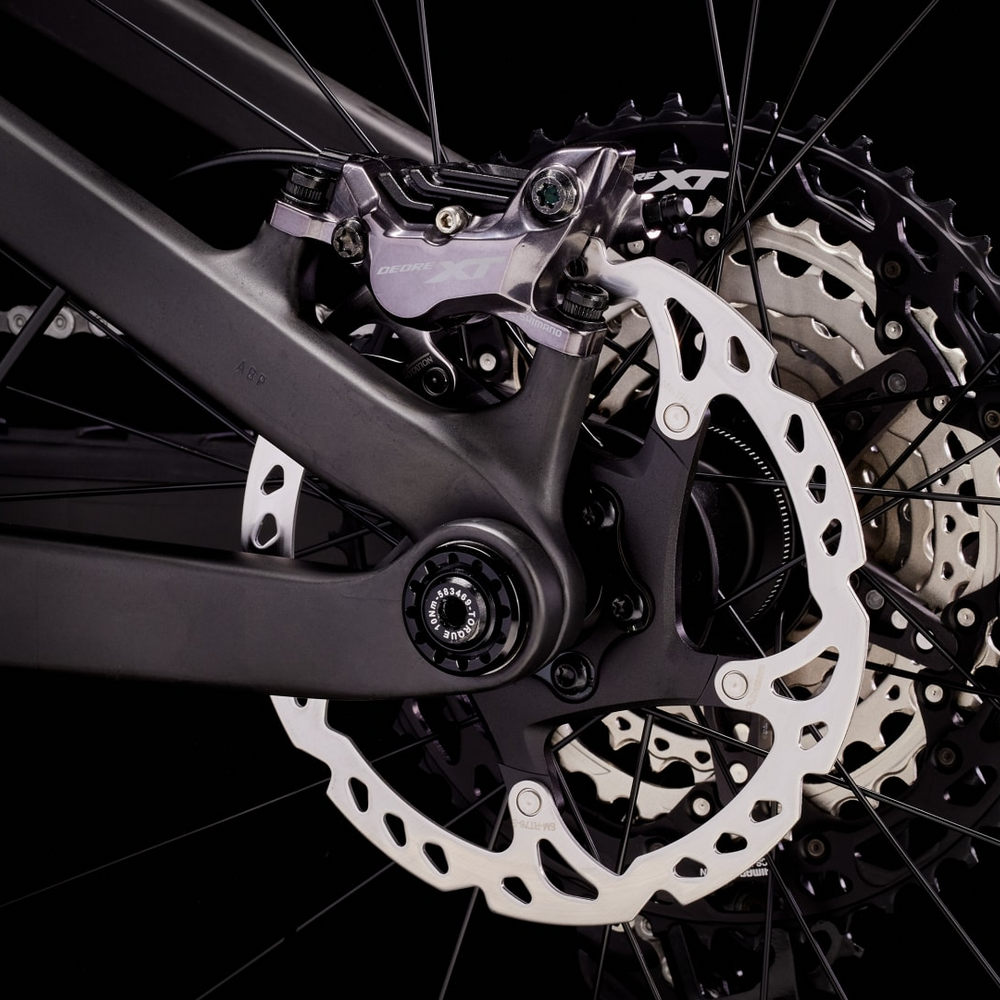

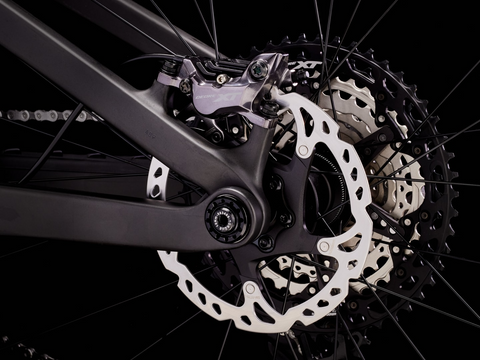

A light and stiff full carbon frame, 130 mm RockShox Pike Select+ fork, 120 mm of rear travel with a RockShox Deluxe Ultimate RCT shock and a new Shimano XT 1x12 drivetrain. Plus, wide carbon Bontrager Line Elite 30 wheels with a 108-tooth Rapid Drive hub for instant engagement, 4-piston brakes for confident descents, Bontrager Line Elite Dropper and carbon handlebars.
The final word
Top Fuel 9.8 is a ridiculously fun carbon down-country bike with upgraded parts that give you noticeable benefits on the trail, like more speed from the carbon wheels and more grip from the ultra-smooth suspension.
Why you'll love it
- Wider Line Elite 30 wheels provide better tyre support so you can run lower pressure and get more traction

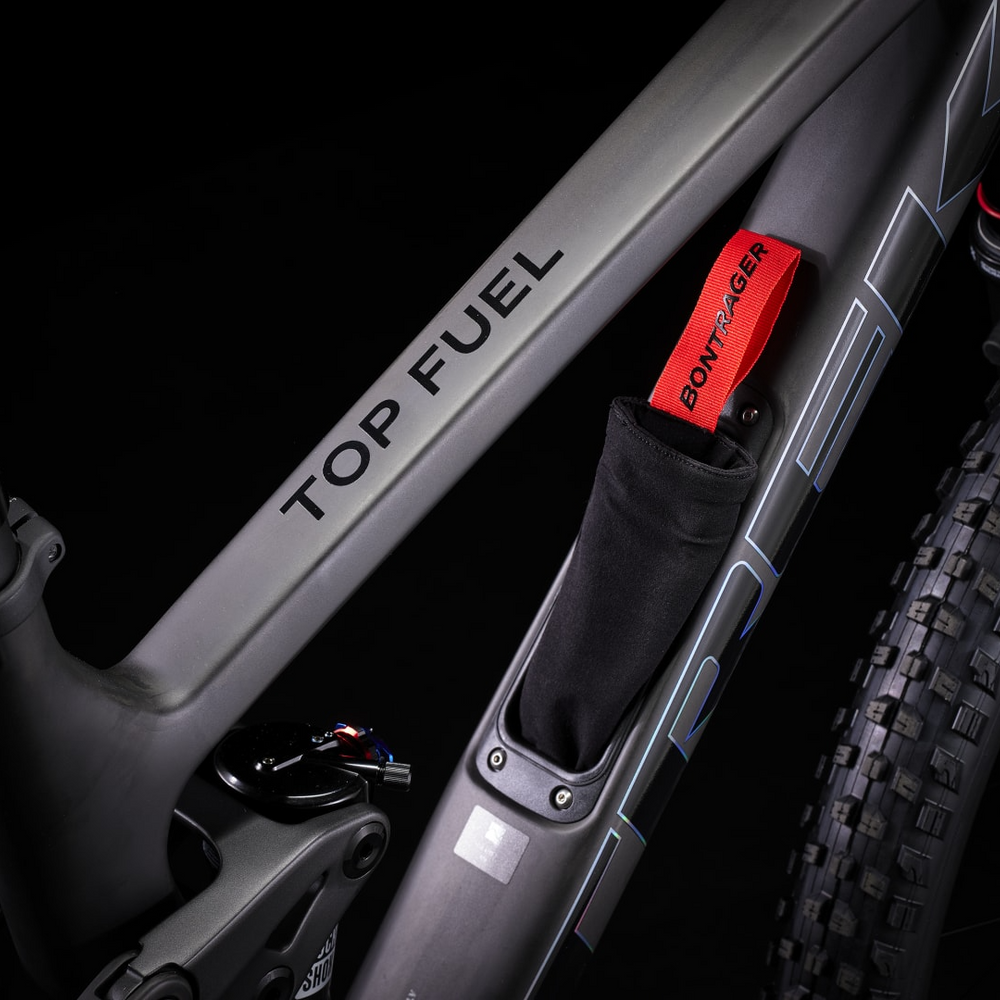

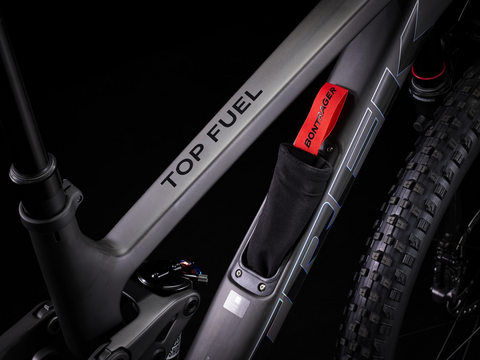

- A sleek internal storage compartment gives you a versatile spot to stow tools and gear
- This bike’s killer suspension set-up is both efficient and ready to party

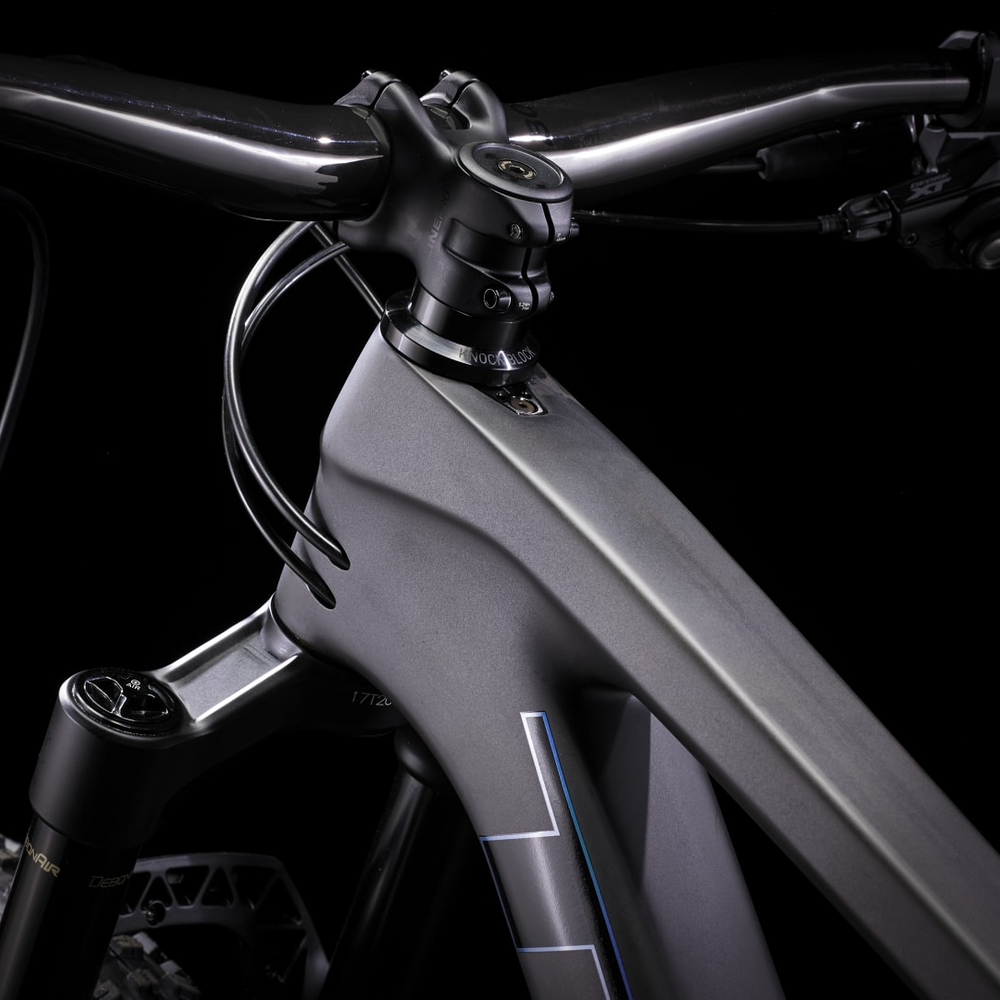

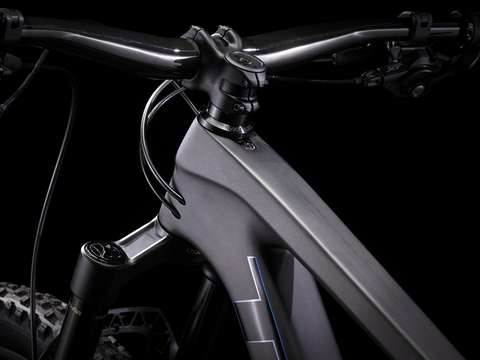

- New, removable Knock Block has a bigger steering angle to keep cables and hoses safe without sacrificing turning radius
*Please note – spec applies to all sizes unless listed separately
|Frame||OCLV Mountain Carbon, internal storage, tapered head tube, Knock Block 2.0, internal guided routing, downtube guard, magnesium rocker link, Mino Link, ABP, Boost148, 120 mm travel|
|Fork||RockShox Pike Select+, DebonAir spring, Charger 3 RC2 damper, tapered steerer, 44 mm offset, Boost110, 15 mm Maxle Stealth, 130 mm travel|

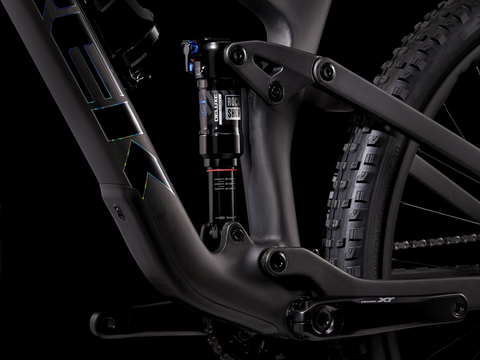

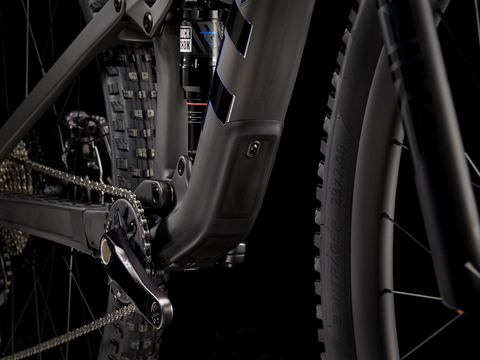

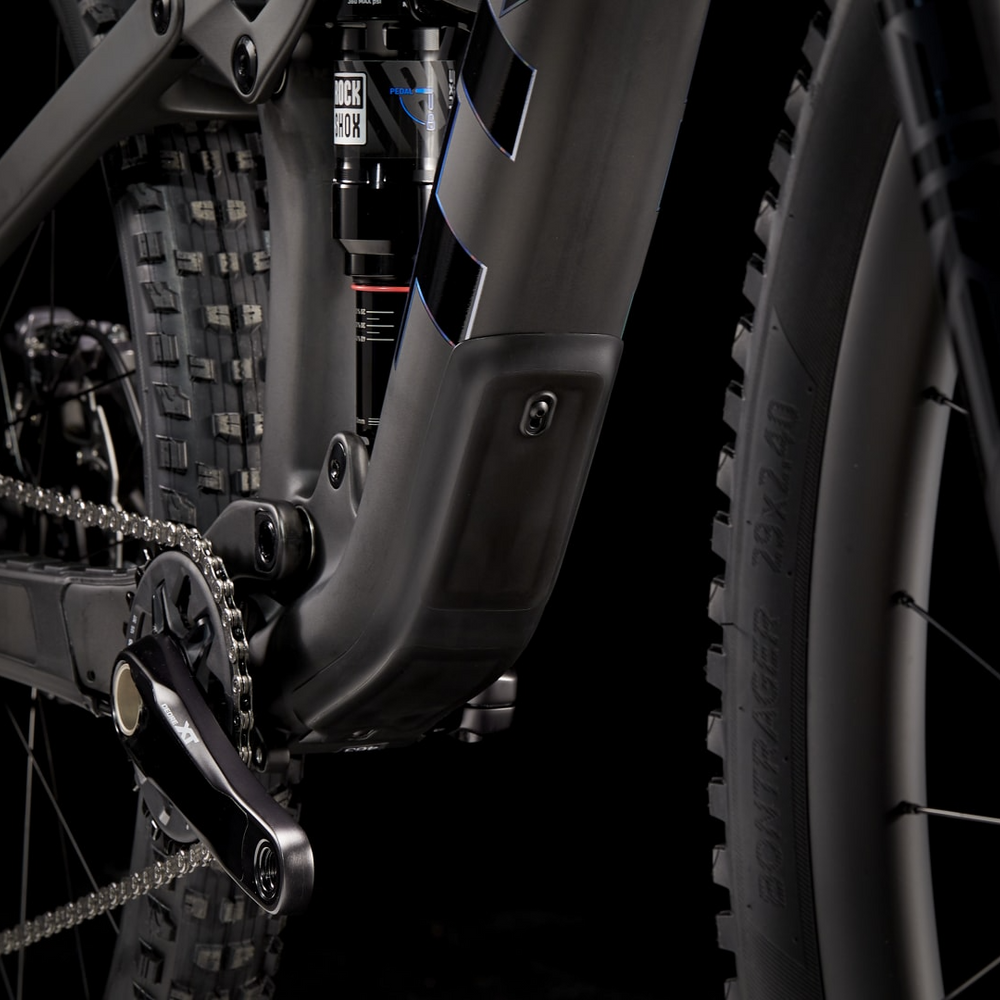

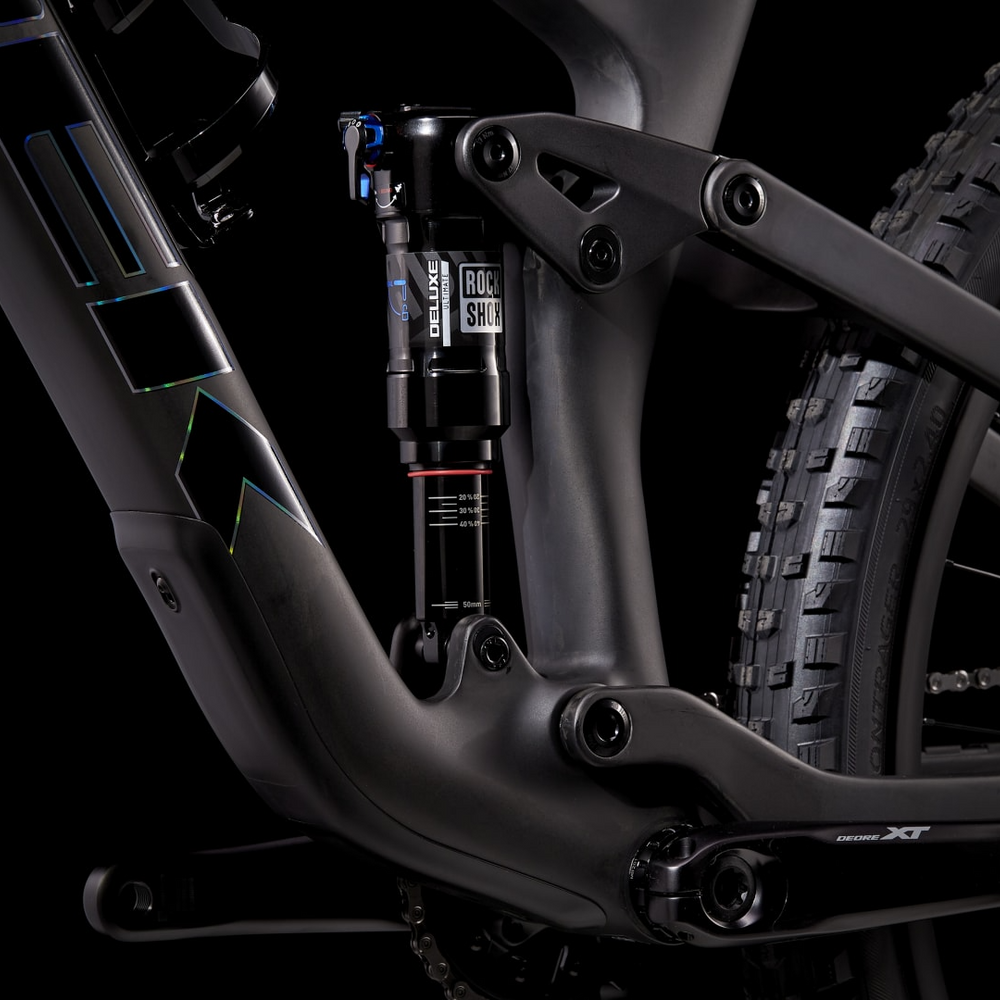

|Shock||RockShox Deluxe Ultimate RCT, 185 mm x 50 mm|
|Max compatible fork travel||130mm (541mm axle-to-crown)|
|Wheel front||Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless Ready, 6-bolt, Boost110, 15 mm thru axle|
|Wheel rear||Bontrager Line Elite 30, OCLV Mountain Carbon, Tubeless-Ready, Rapid Drive 108, 6-bolt, Shimano MicroSpline freehub, Boost148, 12 mm thru axle|
|Hub front||Bontrager alloy, sealed bearing, alloy axle, 6-bolt, Boost110, 15 mm thru axle|
|Hub rear||Bontrager alloy, sealed bearing, 6-bolt, Rapid Drive 108, Shimano MicroSpline freehub, Boost148, 12 mm thru axle|
|Skewer rear||Bontrager Switch thru-axle, removable lever|

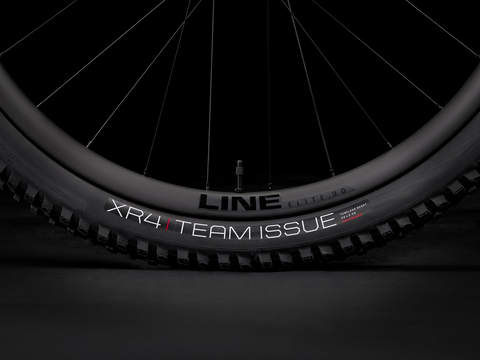

|Rim||Bontrager Line Elite 30, Tubeless-Ready|

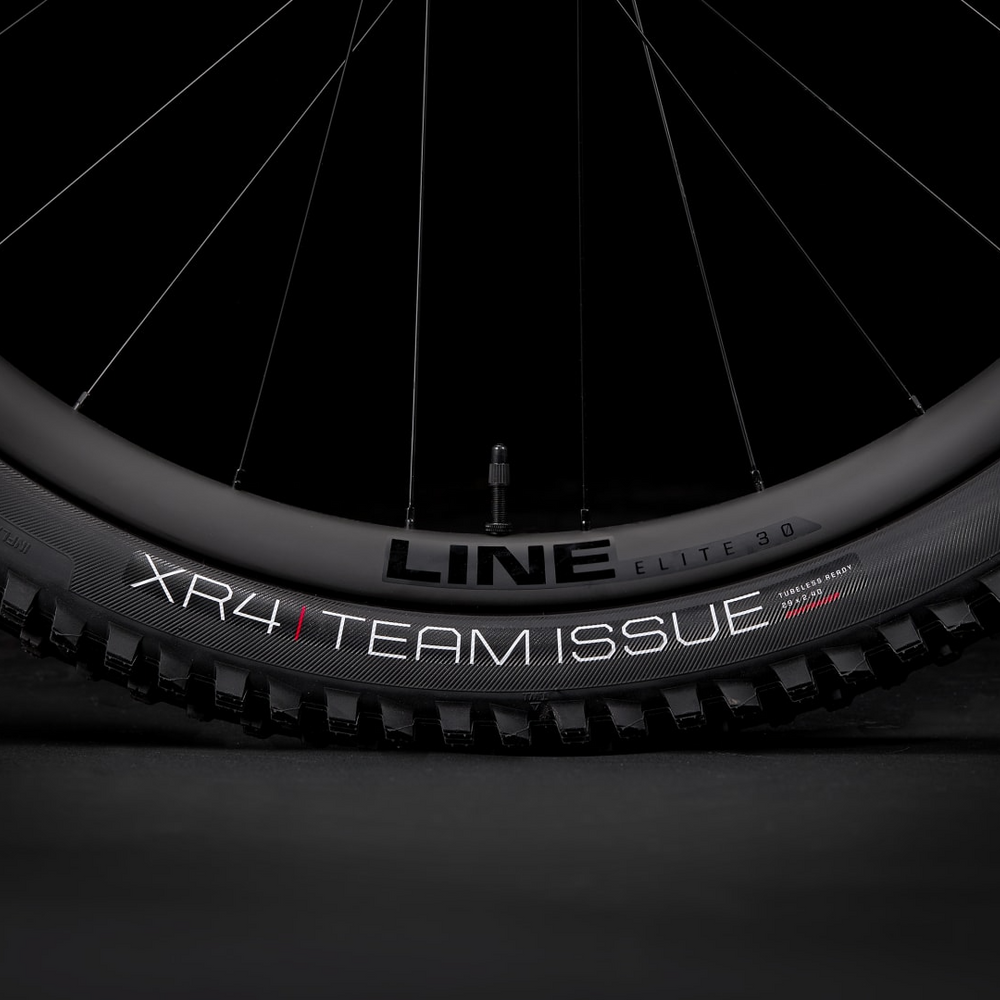

Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 27.5 x 2.40''
Size: S, M, M/L, L, XL
Bontrager XR4 Team Issue, Tubeless Ready, Inner Strength sidewalls, aramid bead, 120 tpi, 29 x 2.40''
|Tyre part||Bontrager TLR sealant, 180 ml/6 oz|
|Rim strip||Bontrager TLR|
|Max tyre size||Frame: 29x2.50", Fork: See manufacturer|
|Shifter||Shimano XT M8100, 12-speed|

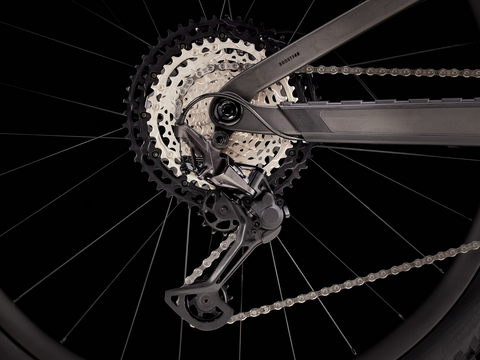

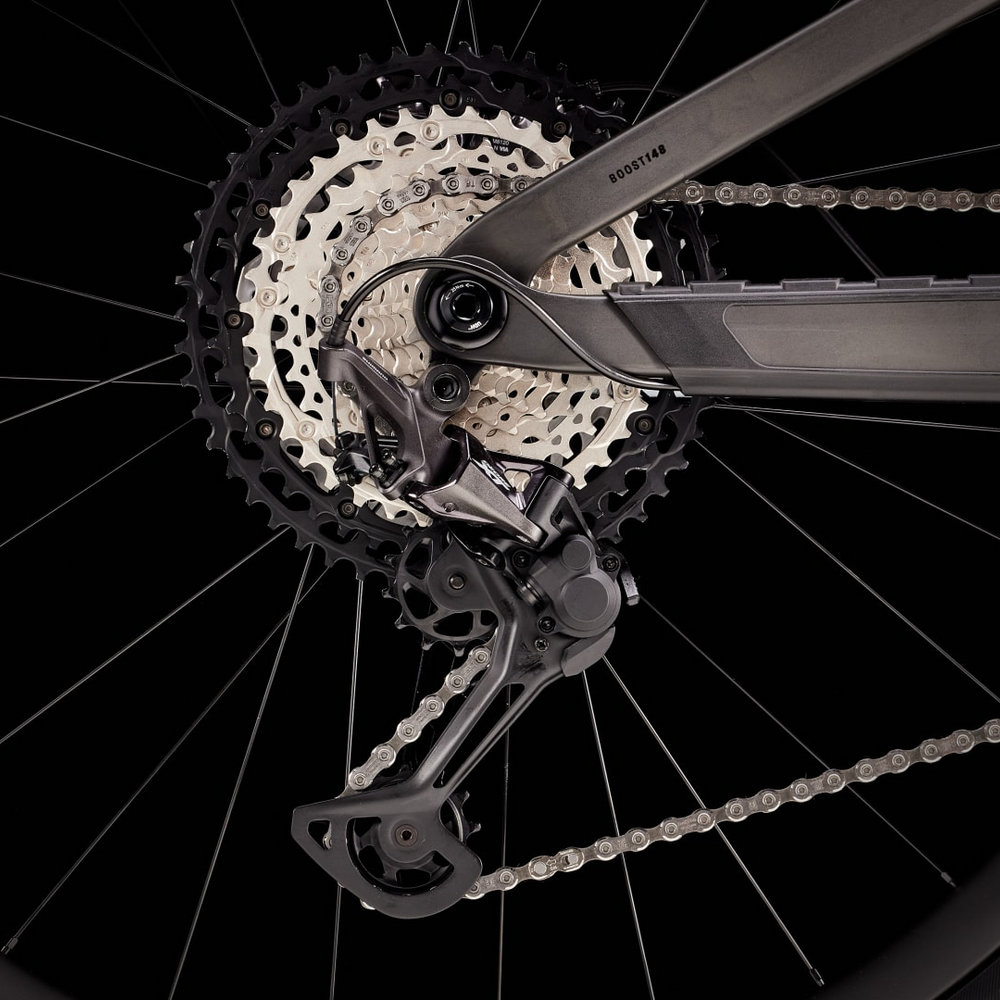

|Rear derailleur||Shimano XT M8100, long cage|
Size: XS, S, M, M/L, L

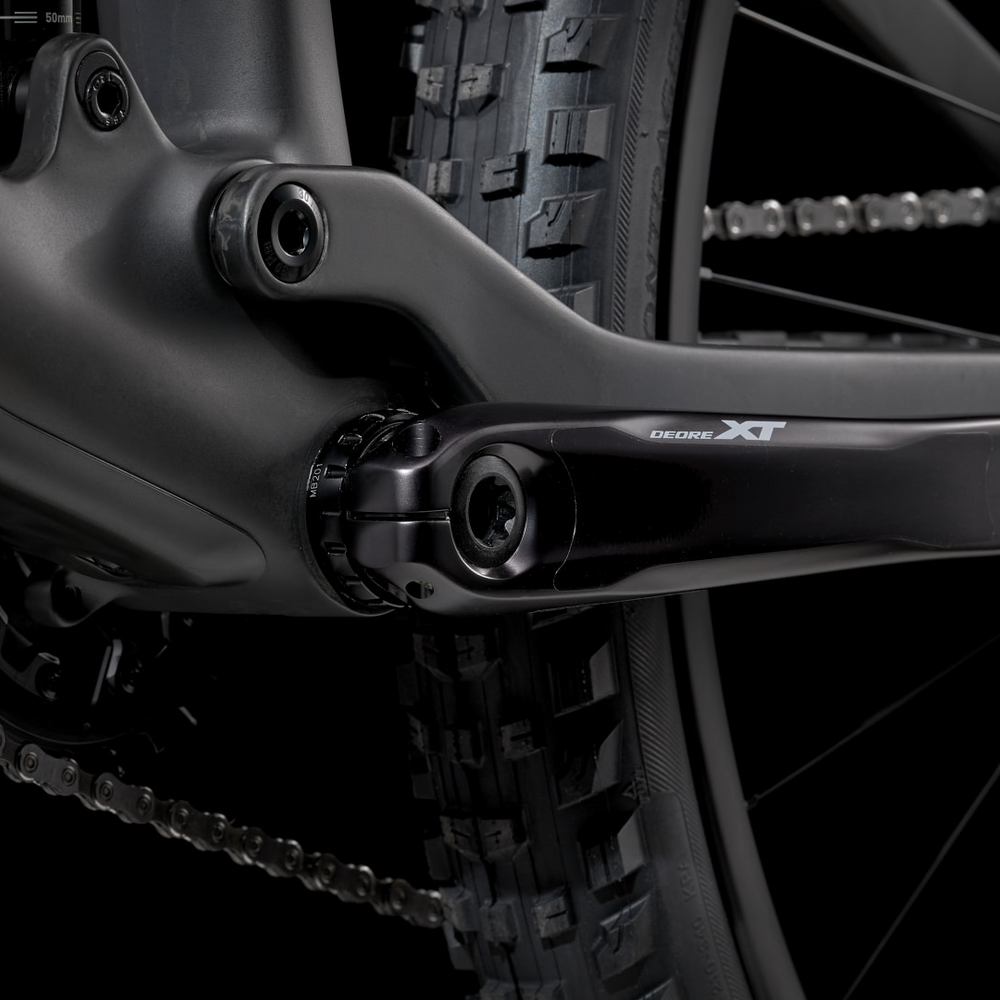

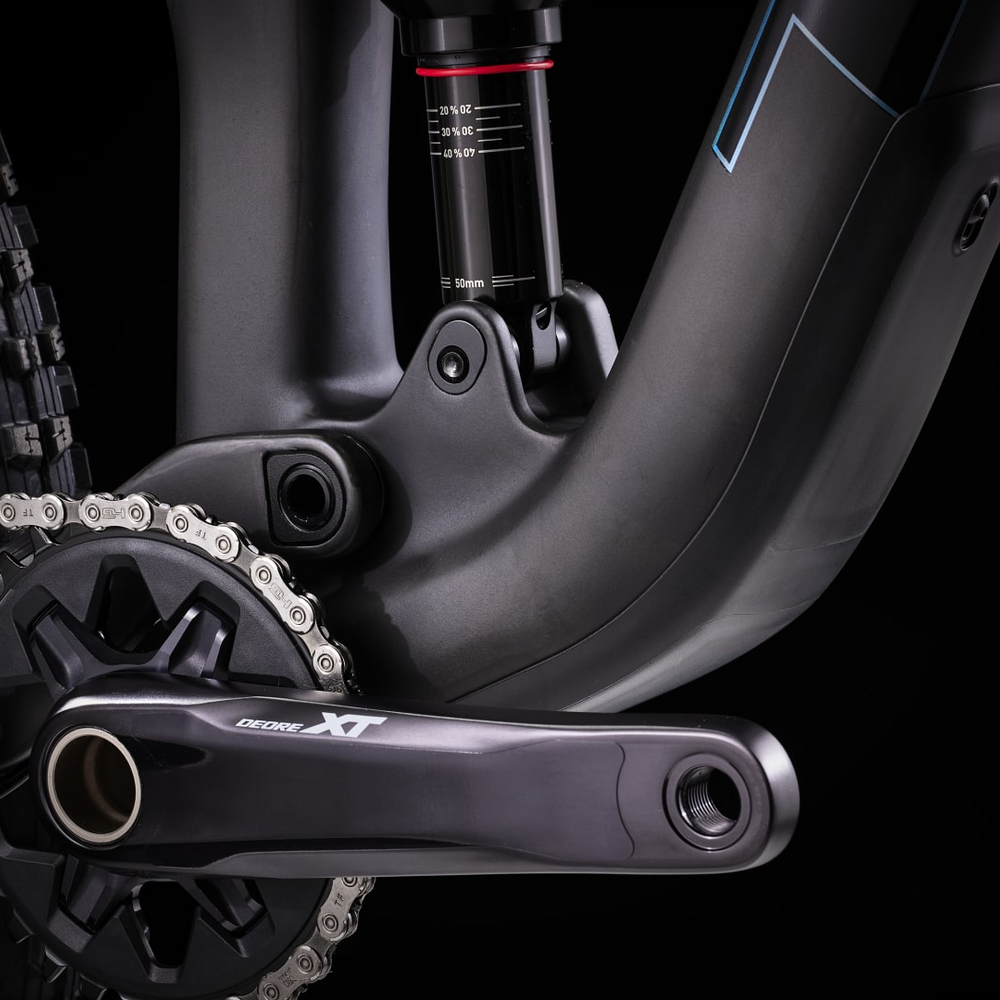

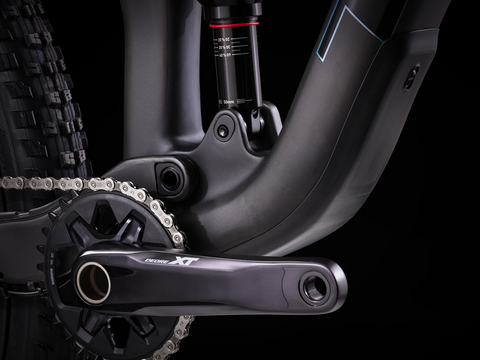

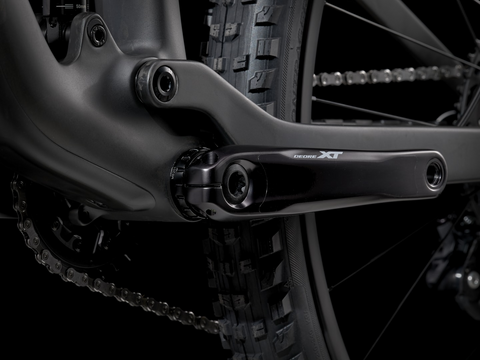

Shimano XT M8120, 30T, 55 mm chain line, 170 mm length
Shimano XT M8120, 30T, 55 mm chain line, 175 mm length
|Bottom bracket||Shimano BB-MT501 BSA|
|Cassette||Shimano XT M8100, 10-51, 12-speed|
|Chain||Shimano Ultegra/XT M8100, 12-speed|
|Max. chainring size||1x: 36T round, 34T oval, min 28T|
|Weight||M – 12.90 kg / 28.44 lb|
|Weight limit||This bike has a maximum total weight limit (combined weight of bicycle, rider and cargo) of 136 kg (300 lb).|
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colours, materials and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based on pre-production painted frames at time of publication. Weights may vary in final production.
